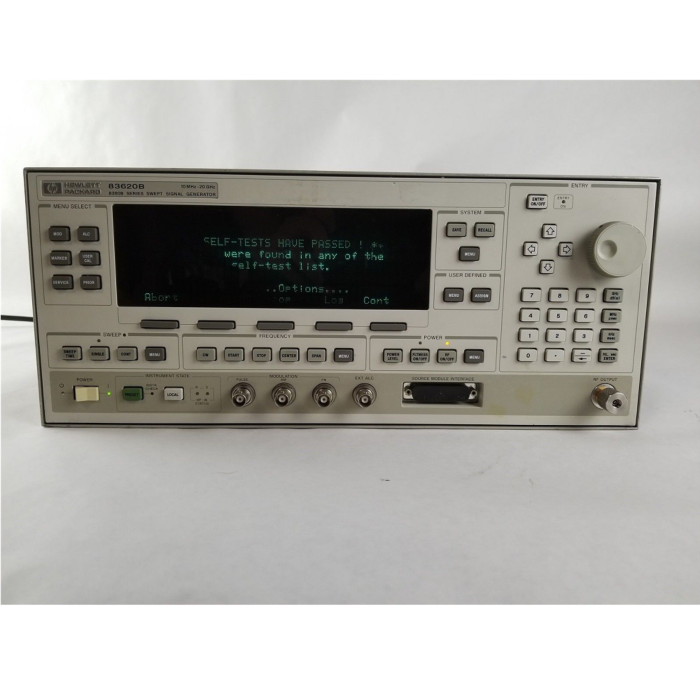

Keysight 83620B for Rent, Synthesized Swept-Signal Generator, 0.01 to 20 GHz
Order #83620B-RENT2|Mfg #83620B
For Rent
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Keysight 83620B Highlights
The Keysight 83620B synthesized sweeper for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83620B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.
+13 dBm calibrated output power
-50 dBc harmonics <20 GHz typical
SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
Complete analog sweeper
1 Hz frequency resolution (Option 008)
Pulse, amplitude and frequency modulation (8360B Series only)
-110 dBm output power with step attenuator (Option 001)
Options: 001:Step Attenuator, 002:Internal modulation generator, 004:RF output connector moved to rear panel, 008:1Hz Frequency Resolution
