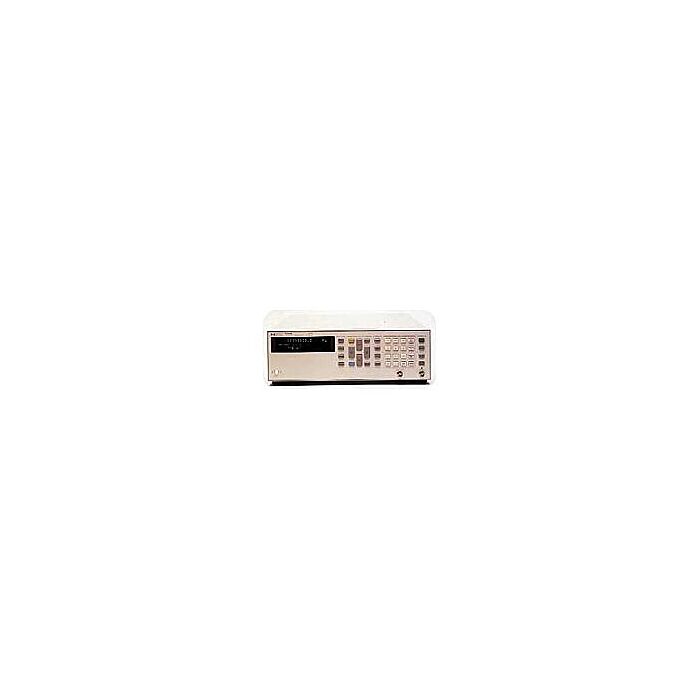

Keysight 3324A for Rent, Synthesized Function/Sweep Generator, 1 MHz to 21 MHz

Keysight 3324A Highlights

The Keysight 3324A synthesized function/sweep generator provides synthesizer performance and multi-segment sweep at a moderate price, for applications such as speed sensors. Additionally, multi-phase signals can be set up, as variable-phase and master/slave capabilities can be used together.

• 1 mHz to 11 kHz (triangle, ramps), 11 MHz (square), 21 MHz (sine)
• Multi-interval sweep
• Master/slave capability
• ±719.9° variable phase
• Additional 60 MHz (auxiliary 0 dBm) output
• Amplitude: 1 mV to 10 V in eight 1-3-10 sequence ranges (50 Ohm into 50 Ohm)
• Outputs and GPIB float up to 40 V
• Option 001: High-Stability Frequency Reference, 0.1 ppm
• Option 002: High Voltage Output (Amplitude: 4 mV p-p to 40 V p-p into 500 Ohm; Frequency: 1 mHz to 1 MHz)
• Options 003 and 004: Automatic Phase Calibration (Calibration: Refers slave phase to master. Interconnect cables are supplied.)
