Starrett 653GJ 55966
Dial Comparator Stand

Order #: 653GJ

Mfg #: 55966

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,958.60

Starrett 653GJ 55966

Dial Comparator Stand

Order #: 653GJ

Mfg #: 55966

$1,958.60
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

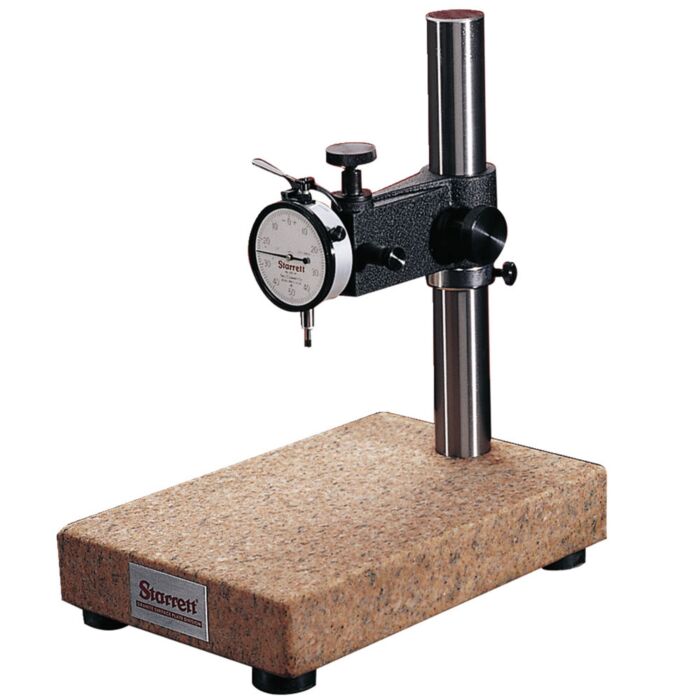

The Starrett 653 Dial Comparator with Granite Base is a bench-type comparator gage that is ruggedly built for in-process and final inspection work. The dial indicator can be adjusted vertically and locked in any position. A sliding ring with locking screw below the beam permits swinging the indicator to either side. The ring also acts as a safety device, preventing the beam from accidentally dropping. There is a fine adjustment on the beam for final indicator setting. The hand lifting lever on the indicator raises the spindle and releases it to contact the work. Left hand lever furnished unless otherwise specified. Both gages have a maximum vertical capacity of 9-1/4" (235mm) and a throat depth of 5" (125mm) and a vertical indicator fine adjustment of up to 1/2" (12.7mm). Post diameter is 1-1/2". 653G Series have a Starrett Grade A, Crystal Pink Granite base, measuring 8" x 12" x 2" (200 x 300 x 50mm). Base is finished to an overall tolerance of .0001" (0.0025mm). Complete with Granite Base, w/655-141J Indicator.
