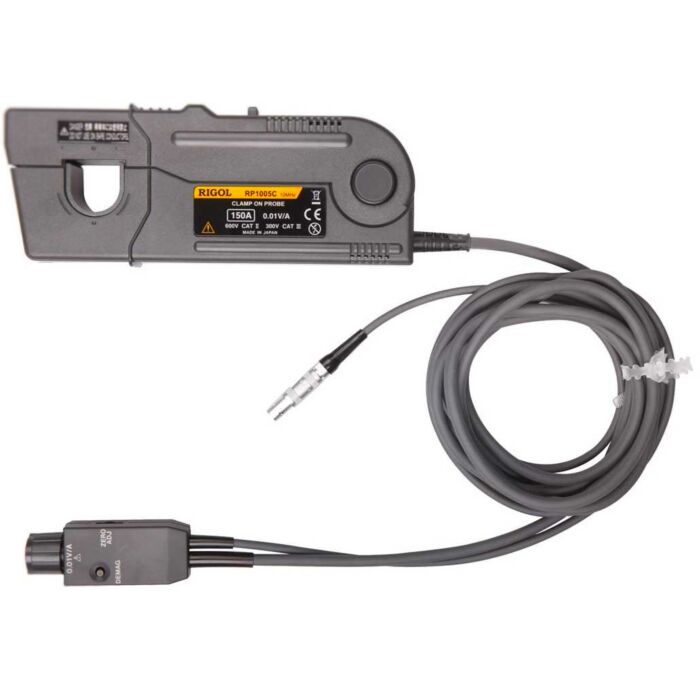

RIGOL RP1005C
Order #: RP1005C
Mfg #: RP1005C
Product Highlights
- Highly accurate current detection
- Easy current measurement
- Broadband frequency characteristics (RP1005C: DC to 10MHz)
- Compact design, permits measurement of low current levels
- Easy protect function at excessive input
- Unique thin film Hall effect element
Specifications
Technical Parameters
Bandwidth |
DC to 10MHz (-3dB), refer to Appendix 1 Amplitude Characteristics (RP1005C) |
Rise Time |
≤35ns |
Linear Response Range of Input Current |
150A, refer to Appendix 2 Relation between Max Input Current and Frequency (RP1005C) |
Maximum Peak Current |
300A peak, non-continuous 500A peak, pulse width≤30μs |
Gain |
0.01V/A |
Gain Accuracy |
±1.0%rdg±1mV, ≤150A ±2.0%rdg, 150A to 300A peak (DC and 45Hz to 66Hz) |
Noise |
≤25mArms (for 20MHz band measuring instrument) |
Input Impedance |
Refer to Appendix 3 Input Impedance (Typical) (RP1005C) |
Gain Accuracy Drift |
≤±2% (0℃ to 40℃ temperature, input of 55Hz, 150A) |
Rated Power |
5.5W |
Supply Voltage |
+12V±1V |
Maximum Rated Voltage |
600V: CATII; 300V: CATIII (insulated conductor) |
Gain Accuracy Period |
1 year (opening/closing up to 10,000 times) |
Effect of External Magnetic Fields |
≤150mA (DC and 60Hz, magnetic field of 400A/m) |
General Specifications
Probe Dimensions |
Current Sensor |
RP1003C: approx. 175mmx18mmx32mm RP1004C: approx. 175mmx18mmx32mm RP1005C: approx. 176mmx69mmx34mm |
