Order #: RP1004C
Mfg #: RP1004C

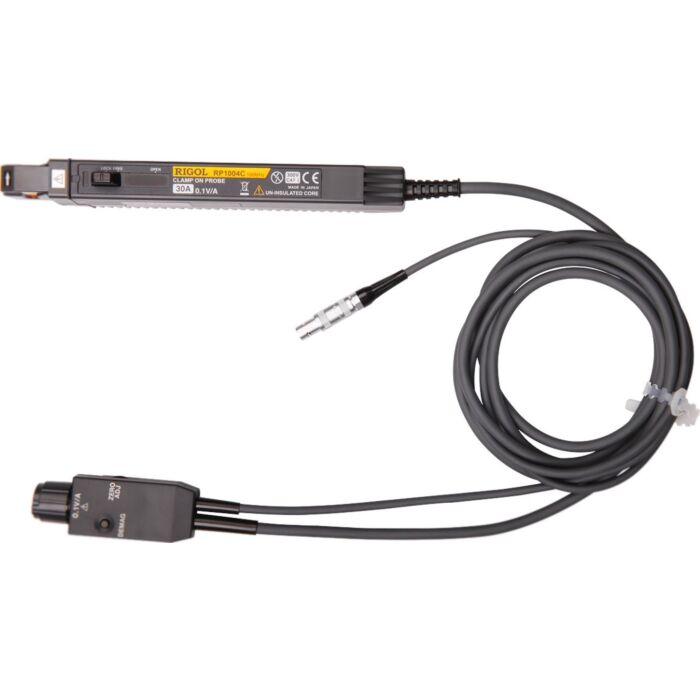

RIGOL RP1004C
Order #: RP1004C
Mfg #: RP1004C
Product Highlights
- Highly accurate current detection
- Easy current measurement
- Broadband frequency characteristics (RP1004C: DC to 100MHz)
- Compact design, permits measurement of low current levels
- Easy protect function at excessive input
- Unique thin film Hall effect element
Specifications
Technical Parameters
Bandwidth |
DC to 100MHz (-3dB), refer to Appendix 1 Amplitude Characteristics (RP1004C) |
Rise Time |
≤3.5ns |
Linear Response Range of Input Current |
30Arms, refer to Appendix 2 Relation between Max Input Current and Frequency (RP1004C) |
Maximum Peak Current |
50A peak, non-continuous |
Gain |
0.1V/A |
Gain Accuracy |
±1.0%rdg±1mV, ≤30A ±2.0%rdg, 30A to 50A peak (DC and 45Hz to 66Hz, within the linear response range of the input current) |
Noise |
≤2.5mArms (for 20MHz band measuring |
|
instrument) |
Input Impedance |
Refer to Appendix 3 Input Impedance (Typical) (RP1004C) |
Gain Accuracy Drift |
≤±2% (0℃ to 40℃ temperature, input of 50Hz, 30A) |
Rated Power |
5.3W |
Supply Voltage |
+12V±0.5V |
Maximum Rated Voltage |
300V, CATI (insulated conductor) |
Gain Accuracy Period |
1 year (opening/closing up to 10,000 times) |
Effect of External Magnetic Fields |
≤5mA (DC and 60Hz, magnetic field of 400A/m) |
General Specifications
Probe Dimensions |
Current Sensor |
RP1003C: approx. 175mmx18mmx32mm RP1004C: approx. 175mmx18mmx32mm RP1005C: approx. 176mmx69mmx34mm |
