RIGOL RP1003C
Current Probe,DC-50 MHz,50A peak

Order #: RP1003C

Mfg #: RP1003C

Questions about availability or need help? Contact Us:

(800) 633-0561
$4,771.20

RIGOL RP1003C

Current Probe,DC-50 MHz,50A peak

Order #: RP1003C

Mfg #: RP1003C

$4,771.20

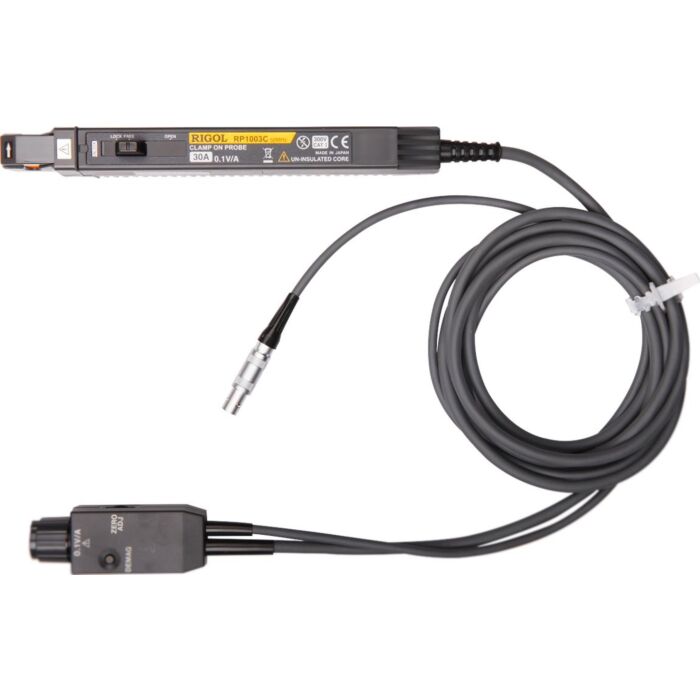

RP1003C current probes can detect the current flowing through the conductor and convert it to voltage that can be displayed on and measured by the measuring instrument.
Availability: Ships in 3-4 weeks

Product Highlights

  •  Highly accurate current detection
  •  Easy current measurement
  • Broadband frequency characteristics (RP1003C: DC to 50MHz)
  • Compact design, permits measurement of low current levels
  • Easy protect function at excessive input
  • Unique thin film Hall effect element



Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

Specifications

 :

Technical Parameters

Bandwidth

DC to 50MHz (-3dB), refer to Appendix 1 Amplitude Characteristics (RP1003C)

Rise Time

≤7ns

Linear Response

Range of Input Current

30Arms, refer to Appendix 2 Relation between Max Input Current and Frequency (RP1003C)

Maximum Peak

Current

50A peak, non-continuous

Gain

0.1V/A

Gain Accuracy

±1.0%rdg±1mV, ≤30A ±2.0%rdg, 30A to 50A peak non-continuous (DC and 45Hz to 66Hz, within the linear response range of the input current)

Noise

≤2.5mArms (for 20MHz band measuring instrument)

Input Impedance

Refer to Appendix 3 Input Impedance



(Typical) (RP1003C)

Gain Accuracy

Drift

≤±2% (0℃ to 40℃ temperature, input of 50Hz, 30A)

Rated Power

5.6W

Supply Voltage

+12V±0.5V

Maximum Rated

Voltage

300V, CAT I (insulated conductor)

Gain Accuracy Period

1 year (opening/closing up to 10,000 times)

Effect of External Magnetic Fields

≤20mA (DC and 60Hz, magnetic field of 400A/m)

General Specifications

Probe

Dimensions

Current Sensor

RP1003C: approx. 175mmx18mmx32mm

RP1004C: approx. 175mmx18mmx32mm

RP1005C: approx.

176mmx69mmx34mm



All products in this series
