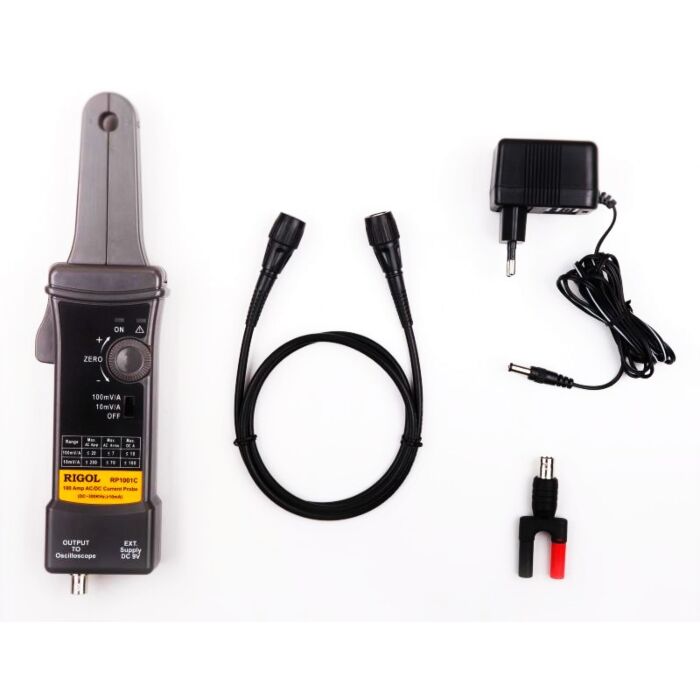

RIGOL RP1001C

Current Range

10mV/A, 100mV/A

DC Accuracy, typical

100mV/A: ±3% ±50mA

(50mA to 10A peak range)

10mV/A: ±4% ±50mA

(500mA to 40A peak range)

100mV/A: ±15% maximum

(40A peak to 100A peak range)

Gain versus frequency, typical

See Appendix 1 Gain versus

Frequency at 1 A Peak (Typical)

Max. Working Current

See Voltage and Current Ratings

Max. Working Voltage

See Voltage and Current Ratings

Max. Floating Voltage

See Voltage and Current Ratings

Frequency Range

DC to 300kHz (-3dB)

Battery Type and

Life, typical

9V NEDA 1604A, IEC 6LR61

13 hours (1 each)

DC Signal Linearity, typical

See Appendix 3 DC Signal Linearity in 10mV/A Range (Typical)

Phase versus frequency, typical

See Appendix 4 Phase versus

Frequency at 1 A Peak (Typical)

Parameter

Max. Working Current (A)

Max.

Working

Voltage

(V)

Max.

Floating

Voltage

(V)

10mV/A Range

100mV/A

Range

DC

100^[1]

10

600

600

DC+AC

Peak

100^[1]

10

600

600

AC Peak

100

10

600

600

AC

Peak-peak

200

20

1200

--

RMS      CAT

III

70.7

7.07

300

300

RMS CAT II

70.7

7.07

600

600

RMS CAT I

70.7

7.07

600

600

Dimensions

280mm x 70mm x 32mm

Max. Conductor Size

11mm

Dual-BNC Coaxial Cable Length

100cm

Weight

260g (battery excluded)

Working

Temperature

0℃ to +50℃

Storage

Temperature

-20℃ to +80℃

Humidity

0℃ to +40℃, 95% humidity

+40℃ to +50℃, 45% humidity

Pollution Degree

2

EC Declaration of Conformity – Low Voltage

Low Voltage Directive 73/23/EEC, as amended by 93/68/EEC

Low Voltage Directive 73/23/EEC, as amended by 93/68/EEC

EN 61010-1/A2:1995: Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1: General requirements.

EN 61010-2-032:1995: Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-032: Particular requirements for hand-held current clamps for electrical measurement and test.

Additional

IEC61010-1/A2:1995: Safety requirements

Compliance

for electrical equipment for measurement, control and laboratory use - Part 1: General requirements.

IEC61010-2-032:1994: Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-032: Particular requirements for hand-held current clamps for electrical measurement and test.

Installation

(Overvoltage)

Category

CAT III: Equipment in a fixed industrial location (usually permanently connected)  CAT II: Equipment at this level includes appliances, portable tools, and similar products. Equipment is usually cord-connected.

CAT I: Secondary (signal level) or battery operated circuits of electronic equipment.
