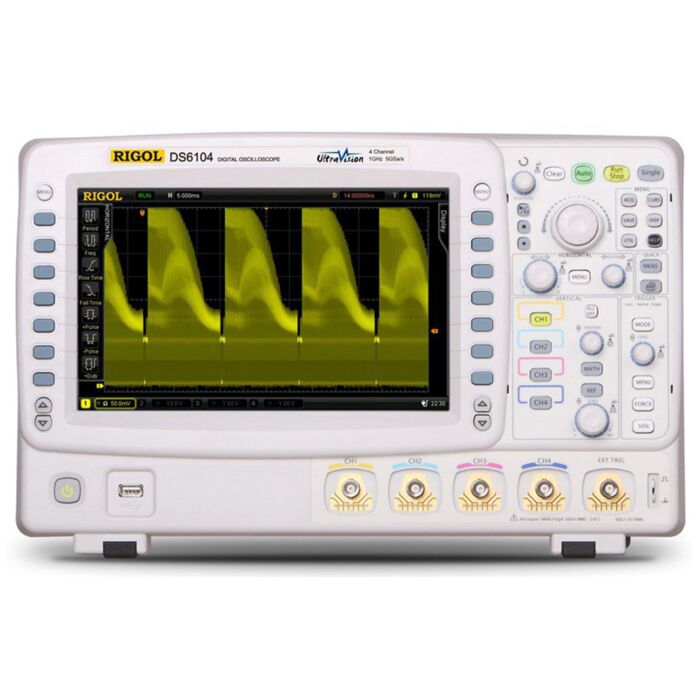

Rigol DS6000 Digital Oscilloscope

The DS6000 Series Digital Oscilloscopes have up to 1 GHz Bandwidth and 1.5GHz bandwidth differential and single-ended active probes (model RP7150). These new products are designed and produced by RIGOL with many key technological breakthroughs designed to reduce engineers search time through research, development, and failure analysis applications. Detecting signal and device characteristics is now easier than ever with the most advanced digital oscilloscope platform in its class.

Why Buy the Rigol DS6000 Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!

DS6000 is a digital oscilloscope with multiple functions and high performance. It is easy to use, perfectly integrating superb technical specifications and various functions to help users to fulfill their tasks (such as quick measurement of parameters, remote interface configuration, and easy connection to the printer) more quickly.

DS6000 Main Features

• 1 GHz or 600 MHz bandwidth
• 2-channel or 4-channel model
• Up to 5 GSa/s real-time sample rate, 100 GSa/s equivalent sample rate, 180,000 wfms/s (dots display) waveform capture rate
• Up to 140 Mpts memory depth (standard)
• Unique Ultra Vision technology
• 10.1-inch WVGA (800*480) 160,000 color TFT LCD, with ultra-wide screen, vivid picture, low power consumption, and long service life
• Capable of identifying the probe type automatically
• Adjustable brightness of analog channel waveform
• Auto setting of waveform display (Auto)
• Various trigger functions, including multiple protocol triggers
• Standard parallel decoding, multiple serial decoding options available
• Auto measurements of 29 waveform parameters and measurement functions with statistic
• Real-time waveform recording, playback and analysis functions
• Fine delayed sweep function
• Built-in FFT function
• Pass/fail test function
• Multiple waveform math operation functions
• Standard configuration interfaces: USB DEVICE, dual USB HOST, LAN and GPIB (optional)
• USB storage device storage and PictBridge printer supported
• LXI-C instrument standards compliance; capable of creating and reconfiguring the test system in a fast, economical, and efficient manner
• Remote command control supported
• Embedded help to facilitate information access
• Multiple languages and Chinese/English input supported
• One-key measurement, storage and printing
• Over 2 hours’ charging for the Lithium battery (optional) to facilitate on-site test and use
• Built-in 1 GBytes flash memory
