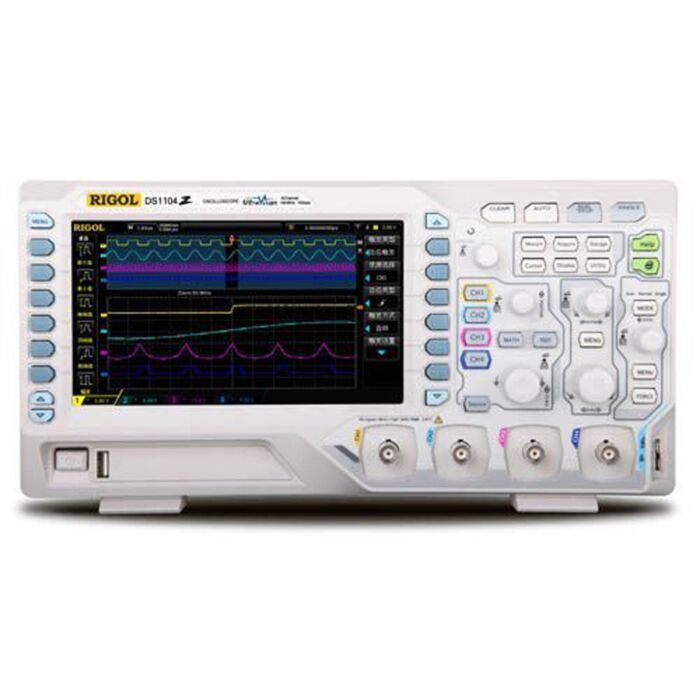

Rigol DS1000Z Digital Oscilloscope
Order #: Rigol DS1000Z Series Digital Oscilloscope
The DS1000Z Series is the new economic level Digital Oscilloscope from Rigol to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The DS1000Z 4 channel oscilloscopes come in 50, 70 or 100 MHz versions with a 7 inch display and Rigol's UltraVision technology as well as a host of options. Add the optional analysis, decoding, deep memory, and integrated 2 channel waveform generator for a powerful 4 channel scope at an exceptional price.
Why Buy the Rigol DS1000Z Series from Transcat? Calibration. Selection. Price.
Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!
DS1000Z series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision technique developed by RIGOL. Featuring extremely high memory depth, wide dynamic range, clear display, excellent waveform capture rate and comprehensive triggering functions, it is a useful commissioning instrument for various fields such as communication, aerospace, defense, embedded systems, computers, research and education. Wherein, the mixed signal digital oscilloscope aimed at the embedded design and test fields allows users to measure analog and digital signals at the same time. DS1000Z is the one with the most comprehensive functions and the most outstanding specifications among the 100 MHz bandwidth digital oscilloscopes.
DS1000Z Main Features
- 1 GSa/s real-time sample rate of the analog channels; up to 24 Mpts memory depth (optional) and 12 Mpts standard memory depth
- 1 GSa/s real-time sample rate of the digital channels
- 100 MHz, 70 MHz and 50 MHz analog channel bandwidth
- 4 analog channels, 16 digital channels (MSO upgradable for DS1000Z Plus)
- Dual-channel 25 MHz signal source (applicable to digital oscilloscopes with source channels)
- 30 000 wfms/s (dots display) waveform capture rate
- Real-time hardware waveform recording and playback functions; up to 60 000 frames of waveform can be recorded
- MSO field upgradable with MSO1000Z upgrade package (MSO upgrade option, only for DS1000Z Plus)
- Intensity graded color display
- Low base noise, 1 mV/div to 10 V/div ultra-wide vertical dynamic range
- 7.0 inch WVGA (800*480) TFT LCD, with ultra-wide screen, vivid picture, low power consumption and long service life
- Adjustable waveform brightness
- Auto setting of waveform display (AUTO)
- Up to 15 kinds of trigger functions, including various protocol triggers
- Standard parallel decoding, supports multiple serial decoding options
- Auto measurement of 37 waveform parameters (with statistics)
- Fine delayed sweep function
- Built-in FFT function
- Multiple waveform math operation functions
- Pass/fail test function
- Standard interfaces: USB Device, USB Host, LAN and Aux
- Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick, economic and efficient creation and reconfiguration of test system
- Supports remote command control
- Built-in help to facilitate information acquisition
- Supports multiple languages and Chinese/English input
- Novel and delicate industrial design and easy operation
Model | DS1054Z | DS1074Z | DS1074Z-S | DS1104Z | DS1104Z-S |
---|---|---|---|---|---|
Bandwidth | 50 MHz | 70 MHz | 100 MHz | ||
Analog Channels | 4 | ||||
Sample Rate | 1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel) | ||||
Max Memory Depth | 12Mpts(standard) ,24Mpts(option) | ||||
Max. Waveform Capture rate | Up to 30,000 wfms/s | ||||
Real Time waveform Record and Replay | Up to 60, 000 Frames(Opt.) | ||||
Std. Probes | RP2200 150MHz BW Passive Probe:4 sets | ||||
Built in 2 Ch Source | No | Yes | No | Yes |
Product Highlights
- 100MHz,70MHz,50MHz Bandwidth, 4 channels
- 1G Sa/s Real-time Sample Rate
- 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
- Innovative "UltraVision" technology
- Up to 30,000wfms/s Waveform Capture Rate
- Built in 2 channels 25MHz waveform Generator(DS1000Z-S)
- 7 Inch WVGA (800x480), multiple intensity levels waveform display
Each Unit Includes
- Packing Kit
- Product CD
- Calibration Certificate
- Power Cord
- USB Cabel
- 1 Probe
