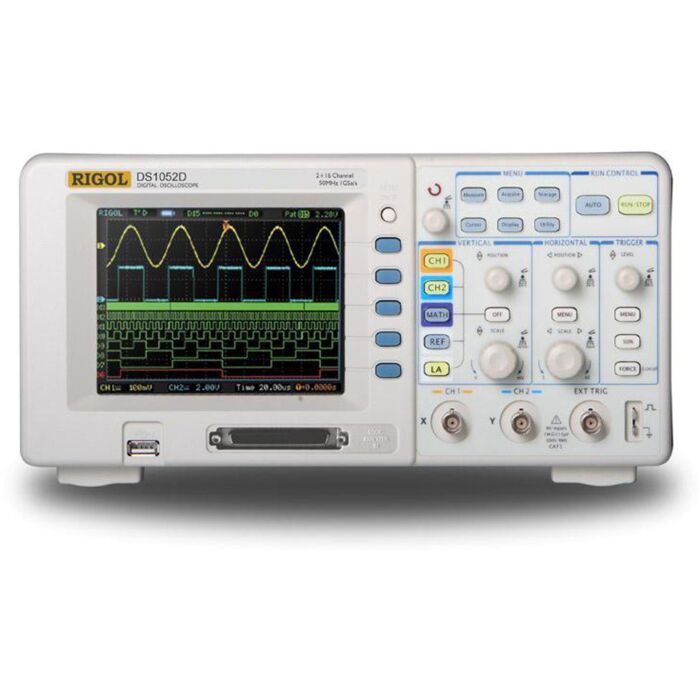

Rigol DS1000D Digital Oscilloscope

Rigol DS1000D Series Mixed Signal Oscilloscopes

Order #: Rigol DS1000D Series Mixed Signal Oscilloscopes

The DS1000D Series Mixed Signal Oscilloscopes sets a new standard for technology and capability. With features including 16 Channel Logic Analyzer, 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000D is the new bench standard.

Why Buy the Rigol DS1000D Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!







The DS1000D series are kinds of economical digital oscilloscope with high-performance. They are designed with dual channels and 1 external trigger channel as well as 16 channels logic analyzer.

The front panel of DS1000D series digital oscilloscopes are clear, direct viewing and easy to use, which consistent with the traditional instrument use fully. To speed up the adjustment and measurement, please press AUTO button to get suitable waveform display and settings. Besides, 1GSa/s maximum real-time sample rate, 25GSa/s maximum equivalent sample rate and the powerful trigger and analyzer functions enable users view or capture the waveform more detailed and faster.

DS1000D Main Features

  • Dual analog channels, 1GSa/s maximum real-time sample rate and 25GSa/s maximum equivalent sample rate, Bandwidth of per channel: 100MHz (DS1102D) 50MHz (DS1052D)
  • Optional 16 digital channels (DS1000D series), each channel can be turned on or off independently, or in a 8 bit group
  • 5.6 inch and 64 k TFT LCD
  • Abundant trigger types: Edge, Pulse Width, Video, Slope, Alternate, Pattern and Duration Trigger (Only for DS1000D series)
  • Unique adjustable trigger sensitivity enables to meet different demands
  • Enable to measure 22 types of wave parameters and track measurements via cursor automatically
  • Unique waveform record and replay function
  • Fine delayed scan function
  • Built-in FFT function, hold practical digital filters
  • Provide 4 types of digital filters: LPF, HPF, BPF, BRF
  • Pass/Fail detection function enables to output testing results
  • Math operations available to multiple waves
  • Powerful PC application software UltraScope
  • Standard configuration interface: USB Device, USB Host ,RS-232 and support USB storage device storage and PictBridge print standards
  • The new function “Special Mode” can meet the needs of industrial production
  • Support for remote command control
  • Built-in help menu enables information getting more convenient
  • Multiple Language User Interface, support Chinese & English input
  • Can store files into USB storage device or the internal memory
  • Waveform intensity can be adjusted
  • To display a signal automatically by AUTO
  • Pop-up menu makes it easy to read and use
ModelDS1102DDS1052D
Bandwidth 100 MHz 50 MHz
Analog Channels 2
Vertical Sensitivity 2 mV/div - 10V/div
Real-time Sample Rate 1 GSa/s(each channel),500 MSa/s(dual channels)
Equivalent Sample Rate 25 GSa/s 10 GSa/s
Standard Interface USB Host & Device, RS-232, P/F Out
Vertical Resolution 8 bits
Math +, -, ×, FFT
Max Input Voltage All inputs 1MΩ‖15pF 300 V RMS CAT I
Cursor Measurements Manual, Track and Auto Measure modes

Availability: Ships in 2-3 Weeks
Grouped product items
Product Name Qty
No options of this product are available.

Product Highlights

  • 16 channels logic analyzer, mixed test, pattern cursor test and data memory.
  • 2 Analog channels plus external trigger
  • 1 Million point deep memory
  • 1 GSa/sec max sample rate
  • 5.7” TFT QVGA (320X240) with 64K color LCD backlit display
  • Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate

Each Unit Includes

  • Packing Kit
  • CD
  • Calibration Certificate
  • Power Cord
  • USB Cable
  • Probes - 2
