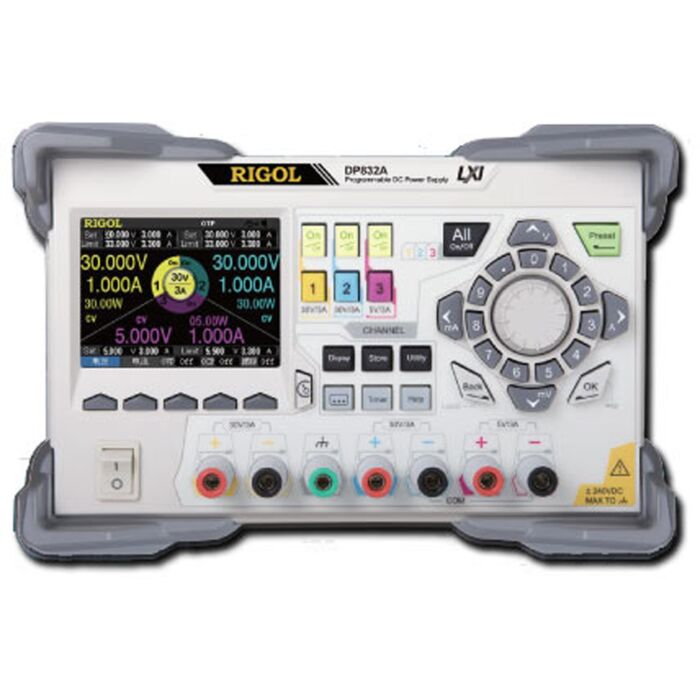

The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP800 Series is a family of linear power supplies systems with 1, 2, or 3 outputs and up to 200 Watts in total. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features in the advanced "A" series supplies means there are even more ways to use the instruments. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application. Select the value models for best price performance or upgrade to the "A" model to improve resolution and add advanced monitoring, triggering, and programming capabilities.

Why Buy the Rigol DP800 Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!



DP800 Main Features

User-friendly Design:

  • 3.5 inch TFT display, can display multiple parameters and states at the same time
  • Support Chinese/English interface and Chinese/English input method
  • Novel and exquisite industrial design and easy operation
  • Provide waveform display function to provide real-time and dynamic display of the output voltage/current waveform, clearly showing the output state and tendency of the instrument in together with the digital display of the voltage, current and power values
  • Provide dial display function, indicating the current output state using the dial pointer by simulating the traditional power display mode
  • Provide on-line help system for easy acquisition of help information

Multiple Safety Protection:

  • Provide overvoltage/overcurrent protection function; users can set the overvoltage and overcurrent parameters to realize effective protection of the load
  • Provide secondary over-temperature protection function to realize double over-temperature protection of the software and hardware
  • Provide intelligent fan speed control function; judge and control the fan speed automatically according to the working condition to effectively reduce the fan noise
  • Provide fan failure check and alarm function
  • Provide keyboard lock function to avoid misoperation

Various Functions and Superb Performance:

  • Multi-channel output; up to 200W total output power; the output of each channel can be controlled independently
  • Superb load regulation rate and linear regulation rate
  • Provide ultra-low output ripples and noise
  • Provide timing output function and support infinite and specified number of cycles of output
  • Provide track function to track the channel voltage setting value and the output on/off status
  • Provide Sense function to automatically compensate for the voltage drop caused by the leads between the power supply and the load
  • Provide delay on/off output function and support infinite or specified number of cycles of channel on/off toggle
  • Provide built-in digital trigger to realize digital trigger input and trigger output functions
  • Provide built-in on-line analyzer to perform on-line analysis of various statistic parameters
  • Provide built-in monitor to monitor the output according to the user-defined monitor condition
  • Provide built-in recorder to perform background recording of the output state after power-on according to certain record period
  • Provide dedicated preset key to perform one-key reset and one-key recall of the commonly used output voltage and current configurations
  • Support serial and parallel output functions
  • Support on-line self-test and manual calibration functions
  • Provide store and recall function
  • Support voltage and current linear programmable functions

Complete Interface Configurations and Flexible Control Method:

  • Standard configuration interfaces: USB HOST, USB DEVICE, LAN, RS232, Digital I/O, Rear Output Interface (DP811A)
  • Support to extend a GPIB interface via the USB-GPIB interface converter (option)
  • Support USB storage device storage
  • Support SCPI remote command control
  • Conform to LXI Core 2011 Device instrument standard
  • Provide standard 9 pin RS232 interface with flow control function
  • Provide 4-wire digital I/O interface which supports the trigger input/output function

Availability: Ships in 2-3 Weeks
Grouped product items
Product Name Qty
No options of this product are available.

Product Highlights

  • 3 Outputs; total power up to 195W
  • Low Ripple Noise <350 uVrms/2mVpp
  • Fast transient response time: <50 us
  • Channel isolation: CH1 || CH2,CH3
  • OVP/OCP/OTP protection functions
  • Built in V, A, W measurements and waveform display
  • Support for output Delay, Analysis, Monitor, and Preset functions
  • 3.5 inch TFT Display
  • Connectivity including USB Host & Device, LAN, and Digital IO
