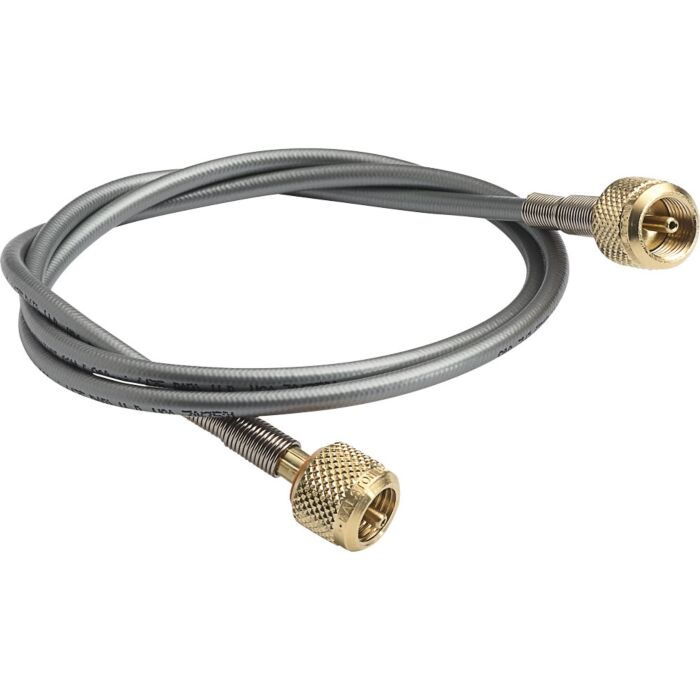

Ralston Instruments QTQT-HOS-2FT
Quick-test 6900PSI Hose,Brass Hose Ends,2ft(61cm)long
Order #: QTQT-HOS-2FT
Mfg #: QTQT-HOS-2FT
$79.74
Ralston Instruments QTQT-HOS-2FT
Quick-test 6900PSI Hose,Brass Hose Ends,2ft(61cm)long
Order #: QTQT-HOS-2FT
Mfg #: QTQT-HOS-2FT
Product Highlights
Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test
- Low volume reduces the pumping effort or compressed gas usage in pressure calibration
- No thread sealant required – connect to adapters without wrenches, thread sealant or thread tape
- Bubble tight connections to 6900 psi (475 bar) with no moving parts reduces maintenance to almost zero
- Hose is hard to break and very flexible
- Adapt from hose to virtually any device under test with only one connection
- Silver color dramatically reduces the effect that changing temperature has on pressure stability
- A corrosion resistant strain-relief on each hose end reduces wear and dramatically increases hose life
- Hose is excellent for inert gas applications (except Helium and Argon)
- Hose is pin-pricked for use in Natural Gas applications
- Made in U.S.A.
- Length: 2 ft
- Pressure Range: 0 to 6900 psi (0 to 475 bar)
- Burst Pressure: 27000 psi (1,860 bar)
- End 1: Female Quick-test, brass
- End 2: Female Quick-test, brass
- Temperature range: -40 to 140 °F (-40 to 60 °C)
- Outer Diameter: 0.2 in (5.1 mm)
- Inner Diameter: 0.08 in (2.0 mm)
- Minimum Bend Radius: 1 in (25.4 mm)
- Color: Silver
- Construction: Polyamide core tube, High tensile synthetic fiber and polyamide outer cover
- End materials: Brass
- Fluid Media: Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
