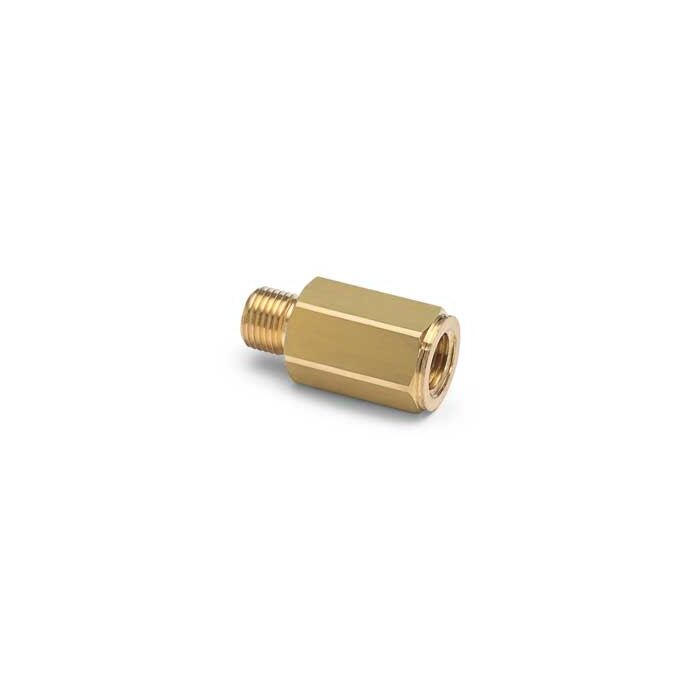

Ralston Instruments QTHA-1FB0-RT
1/8" Female BSPT x Male Quick- Test, No Check Valve, Brass

Order #: QTHA-1FB0-RT

Mfg #: QTHA-1FB0-RT

Questions about availability or need help? Contact Us:

(800) 633-0561
$19.81

Ralston Instruments QTHA-1FB0-RT

1/8" Female BSPT x Male Quick- Test, No Check Valve, Brass

Order #: QTHA-1FB0-RT

Mfg #: QTHA-1FB0-RT

$19.81
Availability: Ships in 3-4 weeks

Product Highlights

  • Connect to any Male BSPT (ISO 7/1) taper thread connection using thread sealant and a wrench
  • Ideal for connecting to male BSPT connections
  • Note that this is NOT an NPT adapter and is not compatible with NPT connections
  • Made in USA
  • Pressure Range 0 to 5000 psi (0 to 345 bar)
  • End C1 1/8" Female BSPT
  • End C2 Male Quick-test
  • Has Check Valve No
  • Temperature range 0 to 225 °F (-18 to 107 °C)
  • Construction Brass
  • Seal materials Buna-N
  • Dimensions A 0.98 in (2.49 cm)
  • Dimensions B 0.63 in (1.60 cm)
  • Wrench Size 5/8 in, 16 mm
