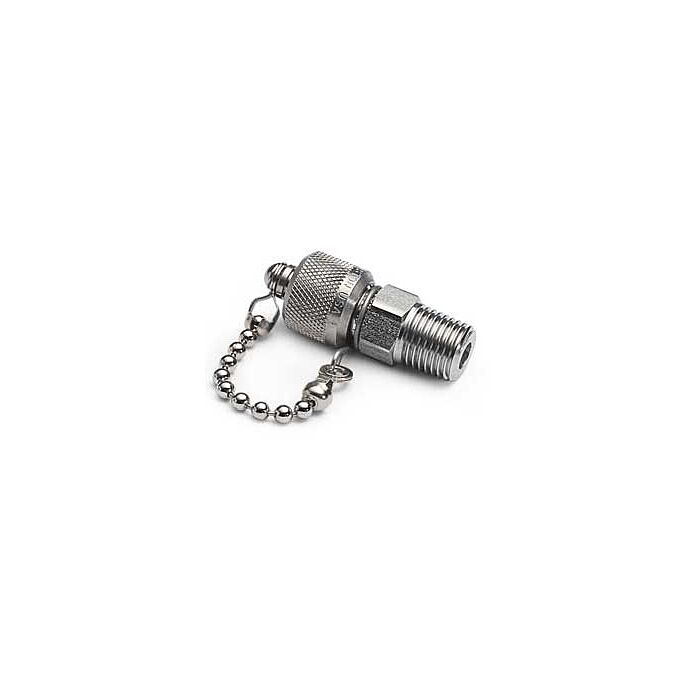

Ralston Instruments QTFT-4MS0

Product Highlights

• A removable cap provides easy access connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete
• Pressure Range 0 to 5000 psi (0 to 345 bar)
• End C1 1/2" Male NPT
• End C2 Male Quick-test with Cap and Chain
• Has Check Valve No
• Maximum Working Temperature 140 °F (60 °C)
• Construction Stainless Steel
• Seal materials Buna-N
• Dimensions A 2.14 in (5.44 cm)
• Dimensions B 0.87 in (2.21 cm)
• Wrench Size 7/8 in, 23 mm
