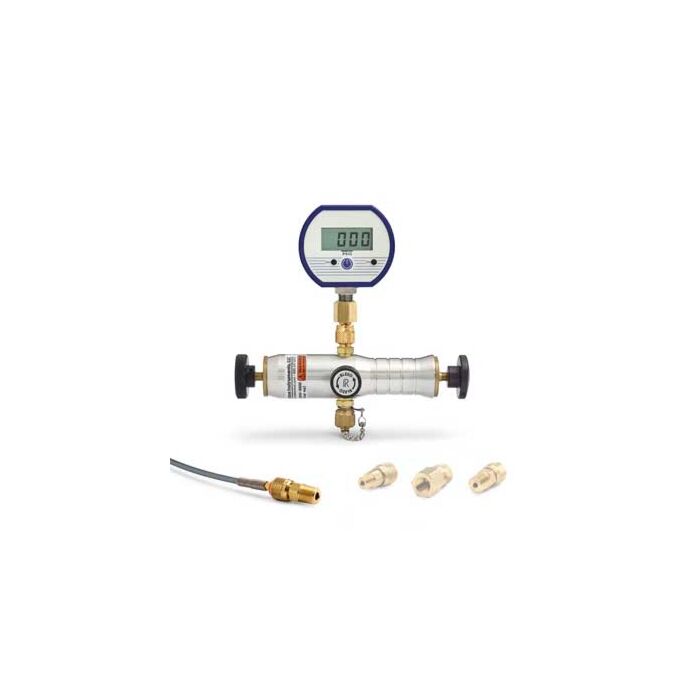

Ralston Instruments DV0V-30HG-D
Vacuum Calibrator Kit

Order #: DV0V-30HG-D

Mfg #: DV0V-30HG-D

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,382.36

Ralston Instruments DV0V-30HG-D

Vacuum Calibrator Kit

Order #: DV0V-30HG-D

Mfg #: DV0V-30HG-D

$1,382.36
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Create a vacuum and calibrate pressure devices with included vacuum pump and vacuum gauge
  • Light weight, compact pump generates -25” Hg vacuum with ease
  • Large volume fine adjustment piston provides precise control, even at very low vacuums
  • Modular design makes field maintenance quick and easy
  • Precisely vent pressure with soft seated bleed valve
  • Two outlet ports provide connections for both pressure reference and for device under test thus eliminating a tee
  • Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
  • Rugged, all metal construction reduces pressure changes due to temperature fluctuations
  • Made in U.S.A.

Each Unit Includes

  • Hand Pump - DV0V Assembly (DV0V)
  • Gauge - 0-30 Inch Hg Vacuum, Digital Pressure Gauge (GAUD-30HG)
  • Gauge Adapter - 1/4" female NPT x female QT, no check-valve, brass (QTHA-2FBA)
  • Hose - Quick-test hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
  • Hose Adapter - 1/4" male NPT x male QT, no check-valve, brass (QTHA-2MB0)
