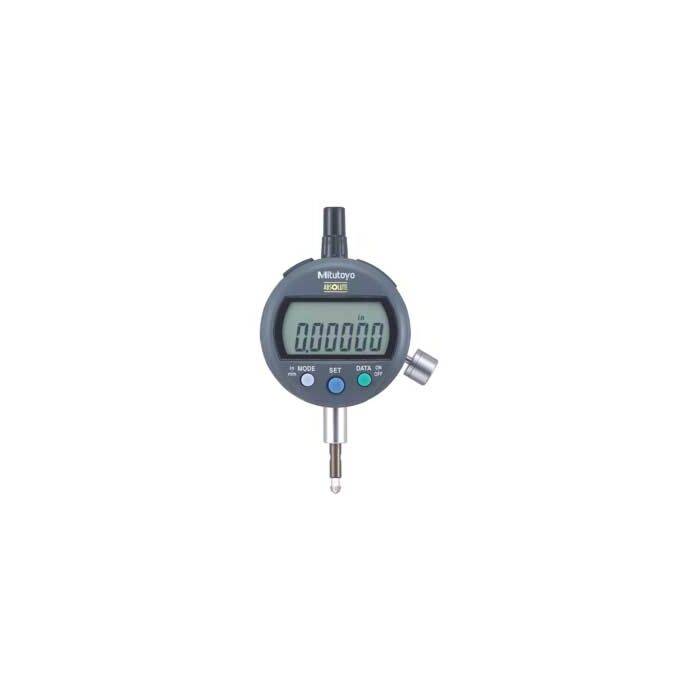

Mitutoyo 543-396
Dial Indicator, Inch/Metric .5/12.7mm C112CEX

Order #: 543-396

Mfg #: 543-396

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,012.03 Regular Price $1,054.20

Mitutoyo 543-396

Dial Indicator, Inch/Metric .5/12.7mm C112CEX

Order #: 543-396

Mfg #: 543-396

Special Price $1,012.03 Regular Price $1,054.20
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Range .5in/ 12.7mm
  • Accuracy .0001in
  • Contact Point Stem dia 3 8 in 4-48 UNF Thread
  • Measuring Force Less than 0.4, 0.6, 0.7N
  • Resolution *Switchable *.00005in 0.001mm
  • ANSI/AGD
  • Low measuring force
  • Resolution: 0.01mm, 0.001mm, .0005"/0.01mm, .0001”/0.001mm or .00005”/0.001mm
  • Display: LCD
  • Length standard: ABSOLUTE electrostatic capacitance type linear encoder
  • Max. Response speed: Unlimited
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 5,000 hours under normal use
  • Dust/Water protection level: IP42 or IP53 (dust-proof type)
