Order #: 45532EL
Mfg #: DLRO200-115
Megger DLRO200-115
Order #: 45532EL
Mfg #: DLRO200-115
Product Highlights

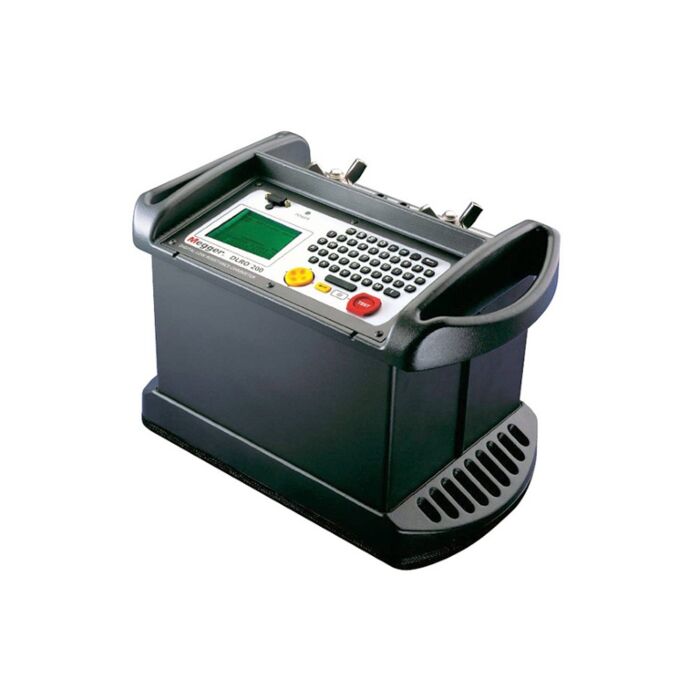

The Megger DLRO200 series digital microhmmeter measures resistance in switch and breaker contacts, bus-bar joints, and other high-current electrical systems. The meter is autoranging and digital for safety and ease of use. The internal memory stores up to 300 sets of results, which can be annotated with notes by the user. The results and notes can be downloaded to a PC or directly outputted to a printer via the RS232 port. The microhmmeter measures resistance from 0.1 microhms to 1 ohm, with test currents from 10 to 200A. The unit is safety rated to European Standard EN61010-1. The DLRO200 series is used by electricians and electrical contractors.
- Small and Weighs Less than 33 lbs (14.5kg)
- Test Currents from 10 A to 200 A d.c.
- Filtered Direct Current Output Eliminates Magnetic Transients
- 0.1 µW Best Resolution
- On Board Memory for Up to 300 Test Results and Notes
- RS232 Port to Download Stored Results or for Real Time Output to a Printer
- Supplied Complete with 16 ft. (5m) Test Leads and Download Software
Each Unit Includes
- 16 ft. (5 m) Lead set comprising 2 x 25 mm2 current leads with clips
- 2 potential leads with clips
- 5059E Kelvin Clips
- Download Manager
- User Guide on CD-ROM
- RS232 download cable
- Quick Start Guide (English)
- Megger TL1.5-CLConnect Test Leads w/Indicator Light,1.5m
Order #: 1006-456
Mfg #: 1006-456
Availability: Ships in 3-4 weeks$182.00 - Megger TL3-CLConnect Test Leads w/Indicator Light,3m
Order #: 1006-458
Mfg #: 1006-458
Availability: Ships in 3-4 weeks$224.00 - Megger TL1.5-CConnect Test Lead w/o Indicator Light,1.5m
Order #: 1006-452
Mfg #: 1006-452
Availability: Ships in 3-4 weeks$127.40 - Megger TL3-CConnect Test Lead w/o Indicator Light,3m
Order #: 1006-454
Mfg #: 1006-454
Availability: Ships in 3-4 weeks$141.40 - Megger TL6-C6m Connect Test Lead w/o Indicator Light
Order #: 1006-455
Mfg #: 1006-455
Availability: Ships in 3-4 weeks$177.80 - Megger 1007-023TL3-C-BT51 Connect test leads for BT51 - 3 m
Order #: 1007-023
Mfg #: 1007-023
Availability: Ships in 3-4 weeks$177.80 - Megger 1007-024TL6-C-BT51 Connect test leads for BT51 - 6 m
Order #: 1007-024
Mfg #: 1007-024
Availability: Ships in 3-4 weeks$207.20View details - Megger 1006-460EL6-C Extension Lead Connect 6.0m (X1)n
Order #: 1006-460
Mfg #: 1006-460
Availability: Ships in 3-4 weeks$259.00 -
- Megger DTP1-CDuplex Connect Twist Probe
Order #: 1006-449
Mfg #: 1006-449
Availability: Ships in 3-4 weeks$194.60 - Megger 1006-442DH1-C 3M Connect Duplex Handspike (x2)
Order #: 1006-442
Mfg #: 1006-442
Availability:In stock$707.00 - Megger 1006-443DH2-C 6.0M Connect Duplex Handspike (x1)
Order #: 1006-443
Mfg #: 1006-443
Availability: Ships in 3-4 weeks$434.00 - Megger 1006-444DH4-C Test Leads for DLRO Series
Order #: 1006-444
Mfg #: 1006-444

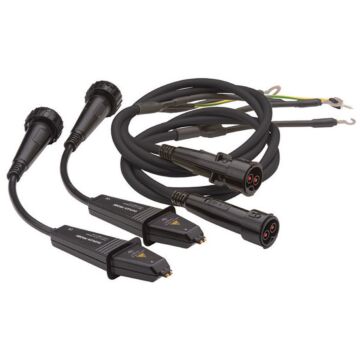

Availability: Call for availability$707.00 - Megger 1006-445DH5-C Two wire, four terminal duplex probe lead set - 3 m
Order #: 1006-445
Mfg #: 1006-445
Availability: Ships in 3-4 weeks$728.00 - Megger KC2-TL3-C3m Insulated Kelvin Clip Lead
Order #: 1006-461
Mfg #: 1006-461
Availability: Ships in 3-4 weeks$917.00 - Megger 1008-028 16 ft Lead Set for DLRO200, DLRO60016 ft Lead Set for DLRO200, DLRO600
Order #: EV6220-755
Mfg #: 1008-028
Availability: Ships in 3-4 weeks$1,561.00
