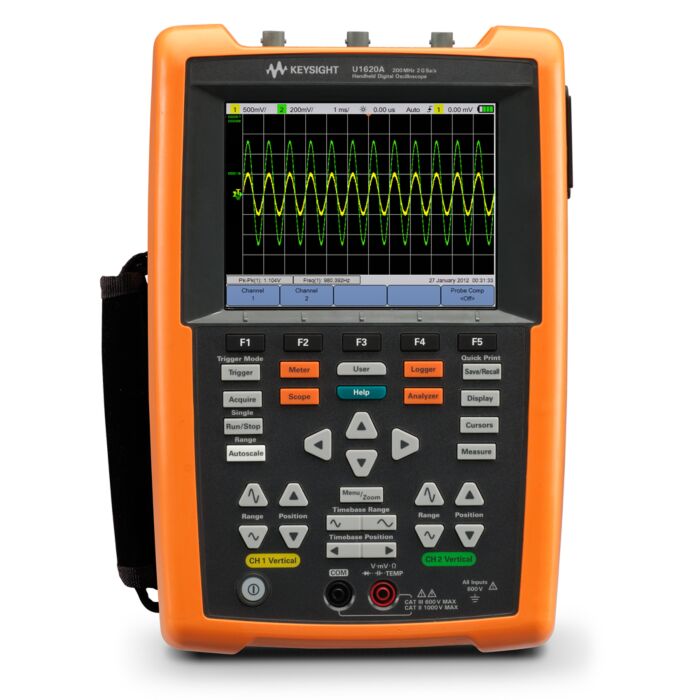

The Keysight U1600 series handheld digital oscilloscope is a dynamic handheld scope with a versatile set of features that is unmatched in the industry.

The U1602B and U1604B are dual channel 20 MHz and 40 MHz oscilloscopes that have built in DMM and recorder functions.

The NEW U1610A/U1620A oscilloscope include two isolated input channels, certified to CAT III 600 V, that protect users and prevent damages to devices when performing floating measurements.

Why Buy the U1600 Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of the Keysight U1600 Series, and can offer 3-day accredited calibrations on new orders. Browse our complete selection of Keysight Oscilloscopes below, or check out our comparison chart to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!



The U1610A has a 100 MHz bandwidth and 1 GSa/s sampling rate while the U1620A provides 200 MHz bandwidth and 2 GSa/s sampling rate. With a maximum memory depth of 2 Mpts, users can capture non-repeating signals such as motor start up sequence and transient waveforms without sacrificing signal details. The 5.7-inch (diagonal) sunlight viewable screen uses VGA TFT LCD technology with enhanced color intensity to clearly distinguish waveform details. Its benchtop-like display and dual window zoom function allow users to easily identify problem areas and zoom in for more detailed analysis. Both models feature three viewing modes: indoor, outdoor and night vision. Each mode uses predefined contrast levels to help engineers and technicians to analyze waveforms under all lighting conditions.

U1600 Series Key Features

  • CATIII 600V isolated channels
  • Up to 2GSa/s sampling rate
  • Up to 2Mpts recording length
  • 5.7 inch VGA TFT LCD display (640x320 resolution)
  • 3 viewing mode display (indoor, outdoor, night-vision)
  • Dual window zoom and math functions
  • 10,000 counts digital multimeter
  • Datalogger capability
  • USB2.0 full speed IO interface

U1600 Comparison Chart

ProductBandwidthSample RateChannelsMax Memory DepthDescription
U1620A
U1620A
200 MHz 2 GSa/s 2 2 Mpts U1620A handheld oscilloscope takes troubleshooting and maintenance task to a whole new level by being the world’s first handheld scope with three viewing modes on a VGA TFT LCD display.

U1610A
U1610A

100 MHz 1 GSa/s 2 120 Kpts U1610A handheld oscilloscope takes troubleshooting and maintenance task to a whole new level by being the world’s first handheld scope with three viewing modes on a VGA TFT LCD display.
U1602B
U1602B
20 MHz 200 MSa/s 2 125 Kpts  Keysight handhelds in orange. 20 MHz handheld oscilloscope, two channels, 4.5” color display, maximum 200 MSa/s sampling rate and up to 125000 points recording length.
U1604B
U1604B
40 MHz 200 MSa/s 2 125 Kpts Keysight handhelds in orange. 40 MHz handheld oscilloscope, two channels, 4.5” color display, maximum 200 MSa/s sampling rate and up to 125000 points recording length.

Availability: Ships in 2-3 Weeks
Grouped product items
Product Name Qty
No options of this product are available.

Product Highlights

  • U1620A - The U1620A is the world’s first handheld scope with a VGA display. This 200 MHz handheld scope offers a floating measurement capability with two CAT III 600 V isolated channels. With a 2 Mpts memory depth, it captures more waveforms from signals such as pulse width modulated circuit, in rush, transient, and motor start up sequences. Its benchtop-like display and dual window zoom function allow you to easily identify problem areas and zoom ing for more detailed analysis. Now, you can view signals in detail and detect glitches easily.
  • U1610A - The U1610A is the world’s first handheld scope with a VGA display. This 100 MHz handheld scope offers a floating measurement capability with two CAT III 600 V isolated channels. With a 120kpts memory depth, it captures more waveforms from signals such as pulse width modulated circuit, in rush, transient, and motor start up sequences. Its benchtop-like display and dual window zoom function allow you to easily identify problem areas and zoom ing for more detailed analysis. Now, you can view signals in detail and detect glitches easily.
  • U1620B - The Keysight U1602B handheld digital oscilloscope is a full-featured oscilloscope that offers maximum versatility for current and future needs. The Keysight U1602B model is a dual-channel, 20-MHz oscilloscope that has built-in DMM and DMM data logging functions.
  • U1604B - The Keysight U1604B handheld digital oscilloscope is a full-featured oscilloscope that offers maximum versatility for current and future needs. The Keysight U1604B model is a dual-channel, 40-MHz oscilloscope that has built-in DMM and DMM data logging functions.

Each Unit Includes

  • U16010A/U1620A - Quick start guide, Power adapter, Li-Ion battery pack, USB cable, Test lead, 10:1 probe (2 sets), Certificate of Calibration (CoC)
  • U1602B/U1604B - 2 U1561A 10:1 Scope probe, U1580A Test leads, U1162A Alligator clips, USB cable, U1570A AC power adapter and cord, U1571A Ni-MH battery pack, Quick Start Guide, Certificate of calibration
