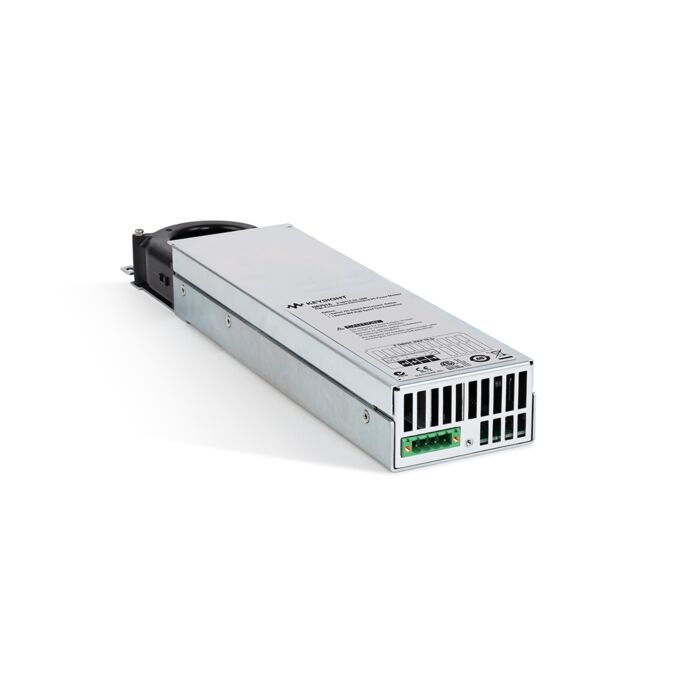

Keysight N6751A High Performance Autoranging DC Power Module, 50W, N6700 Series

Product Highlights

• Guide to Agilent Power Supplies

  Application Notes:

  - Create Complex Sequences with a DC Power Supply

  - Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit

  - Achieve Cleaner Power Signals by Minimizing Common Sources of Noise

• Output Ratings
• Voltage: 50 V
• Current (derated 1% per °C above 40°C): 5 A / 10 A
• Power: 50 W / 100 W
• Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
• Voltage high range: 0.06% + 19 mV
• Voltage low range (= 5.5 V): N/A
• Current high range: 0.1% + 20 mA
• Current low range (= 100 mA, @ 0 - 7 V): N/A
• Ripple & Noise from 20 Hz to 20 MHz
• CV peak-to-peak: 4.5 mV
• CV rms: 350 µV
• (PARD) CC rms: 2 mA
• Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
• Voltage: 2 mV
• Current (@ 0 - 7 V): 2 mA
• (@ 0 - 50 V): 2 mA
