Keysight N2820A 2 Channel high sensitivity

2 Channel high sensitivity

Order #: N2820A

Mfg #: N2820A

$8,315.00

Availability: Ships in 4-6 weeks

This product is available for shipping to the United States and Canada only.

Minimum current range of 50 uA
Maximum current range of 5 A
Wide dynamic range of greater than 20,000:1 or 86 dB
Bandwidth: 3 MHz - zoom-out channel & 500 kHz - zoom-in channel
Ideal for capturing and analyzing low level current flow in the DUT to characterize sub-circuits or measure current consumption of wireless battery-powered devices or integrated circuits
Simultaneous high- and low- gain views of the current waveform for more precise wide dynamic range measurement

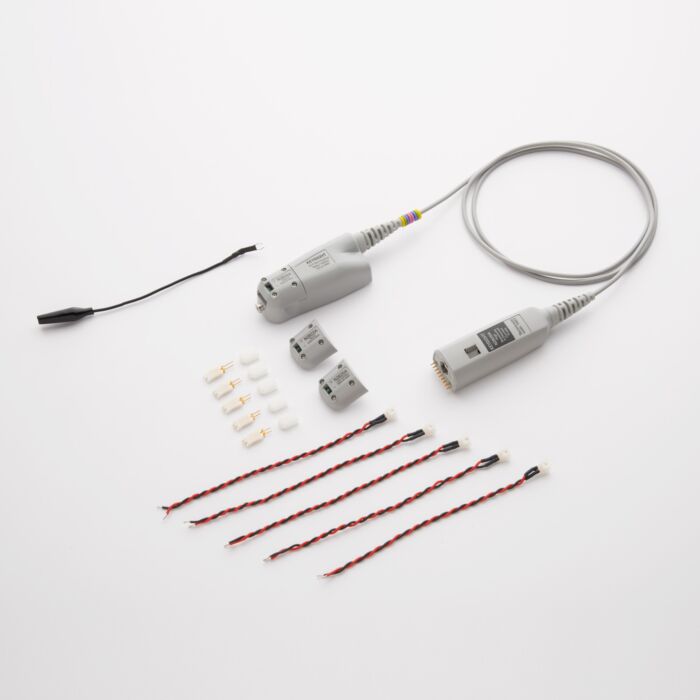

Probe accessories included with the probe or orderable separately: interchangeable sensor heads, MBB receptacles, headers and hook-up wires.
