Keysight 6000X Digital Oscilloscopes

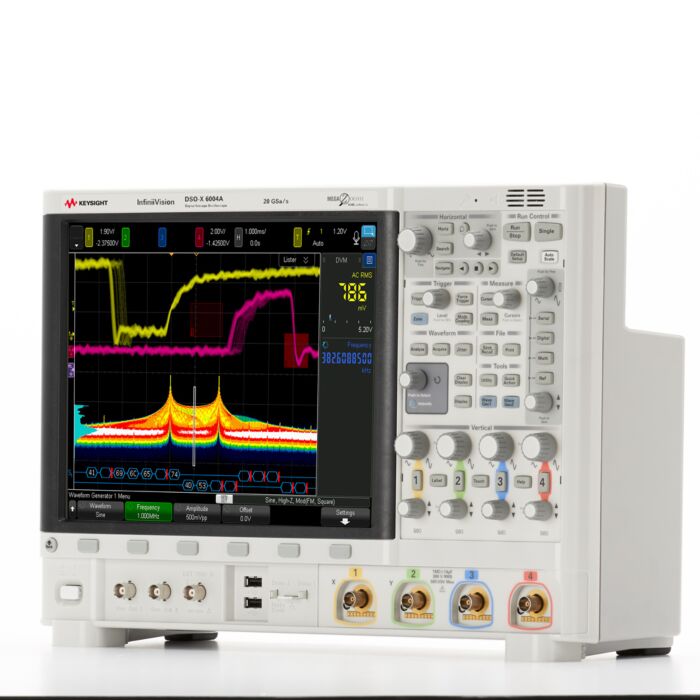

Keysight Technologies 6000 X-Series Oscilloscope
Order #: Keysight Technologies 6000 X-Series Oscilloscope
New Standard for Price Performance: Bandwidth, Visualization, and Integration
In the past, if you wanted an oscilloscope with exceptional performance, you could expect to pay a premium. Not anymore. The IniniiVision 6000 X-Series oscilloscopes combine price and performance to set a new standard in the portable oscilloscope world. Imagine a 6.8-kg, 6-GHz bandwidth oscilloscope that sees and triggers on everything, helps you visualize complex waveforms and grows with your projects.
Why Buy the 6000 X-Series from Transcat? Calibration. Selection. Price.
Transcat is a leading supplier of the Keysight 6000 X-Series, and can offer 3-day accredited calibrations on new orders. Browse our complete selection of Keysight Oscilloscopes below, or check out our comparison chart to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!
6000 X-Series Key Features
- 1 GHz – 6 GHz bandwidth upgradable models are only 6” (15 cm) deep, 15 lbs (6.8 kg)
- 12.1-inch capacitive multi-touch screen with InfiniiScan Zone touch trigger
- Industry leading noise floor and waveform update rate
- Standard histogram and color grade, plus enhanced color FFT
- Optional jitter and real-time eye diagram analysis
- Integrated 3-digit voltmeter (optional)
- The power of 6 integrated instruments in 1, fully upgradable: Oscilloscope, 16 digital channels, serial protocol trigger and decode (option), dual-channel function/arbitrary waveform generator (option), 3-digit digital voltmeter (option), 10-digit counter and totalizer (option)
- Voice control in 14 languages
6000 X-Series Comparison Chart
| Product | Bandwidth | Sample Rate | Channels | Max Memory Depth | Description |
|---|---|---|---|---|---|
MSOX6004A |
1 GHz, upgradable to 6 GHz | 20 GSa/s | 4 analog plus 16 digital | 4 Mpts | This 4 plus 16-channel model in the InfiniiVision 6000 X-Series has 450,000 waveforms/sec update rate, a 12.1-inch capacitive touch display, and full upgradability. Add bandwidth options to upgrade this scope up to 6 GHz. |
| 1 GHz, upgradable to 6 GHz | 20 GSa/s | 2 analog plus 16 digital | 4 Mpts | This 2 plus 16-channel model in the InfiniiVision 6000 X-Series has 450,000 waveforms/sec update rate, a 12.1-inch capacitive touch display, and full upgradability. Add bandwidth options to upgrade this scope up to 6 GHz. | |
DSOX6004A |
1 GHz, upgradable to 6 GHz | 20 GSa/s | 4 analog | 4 Mpts | This 4-channel model in the InfiniiVision 6000 X-Series has 450,000 waveforms/sec update rate, a 12.1-inch capacitive touch screen display, and full upgradability for complete investment protection. |
DSOX6002A |
1 GHz, upgradable to 6 GHz | 20 GSa/s | 2 analog | 4 Mpts | This 2-channel model in the InfiniiVision 6000 X-Series has 450,000 waveforms/sec update rate, a 12.1-inch capacitive touch screen display, and full upgradability for complete investment protection. |
Product Highlights
- New bandwidth standard
- 115 uVrms noise floor at 1 mV/div (1 GHz)
- Standard hardware bandwidth limit control
- Only 6” (15 cm) deep, 15 lbs (6.8 kg)
- New visualization standard
- > 450,000 wfms/sec update rate
- 12.1-inch capacitive multi-touch screen with hardware-based InfiniiScan Zone trigger
- Standard histogram and color grade
- Optional jitter and real-time eye diagram analysis
- New integration standard
- The power of 6 instruments in 1: oscilloscope, 16 digital channels (MSO models), serial protocol triggering and decoding, integrated dual-channel function/arbitrary waveform generator, integrated 10-digit counter and totalizer
- Fully upgradable, including bandwidth
- Enable all of the software applications for one low price. Purchase the DSOX6APPBNDL application bundle and save 80% off the cost of purchasing each option individually.
Each Unit Includes
- 3-year warranty
- Certiicate of calibration, 2-year calibration interval
- Probe One per channel, N2894A 700-MHz passive probe (10:1 attenuation)
- N2756A 16-digital-channel MSO cable (1 per oscilloscope included on all MSO models and DSOX6MSO upgrade option)
- Interface language support/built-in help
- Voice control support
- Power cord
- Front-panel protection
- CD containing localized user’s guide, service guide, and programmer’s manual
AutoProbe interfaceStandard, 4 active probes
| Bandwidth | 1/2.5/4/6 GHz |
| Sampling rate | 20 GSa/s |
| Analog | 2 or 4 |
| Digital | 16 |
| Memory | 4 Mpts standard |
| Segmented memory | Standard |
| Waveform update rate | 500,000 |
| Display size | 12.1 inch |
| Capacitive touch screen | Standard, Multi-touch |
| Hardware zone trigger | Standard |
| Advanced math | Standard |
| Application bundle option | DSOX6APPBNDL |
