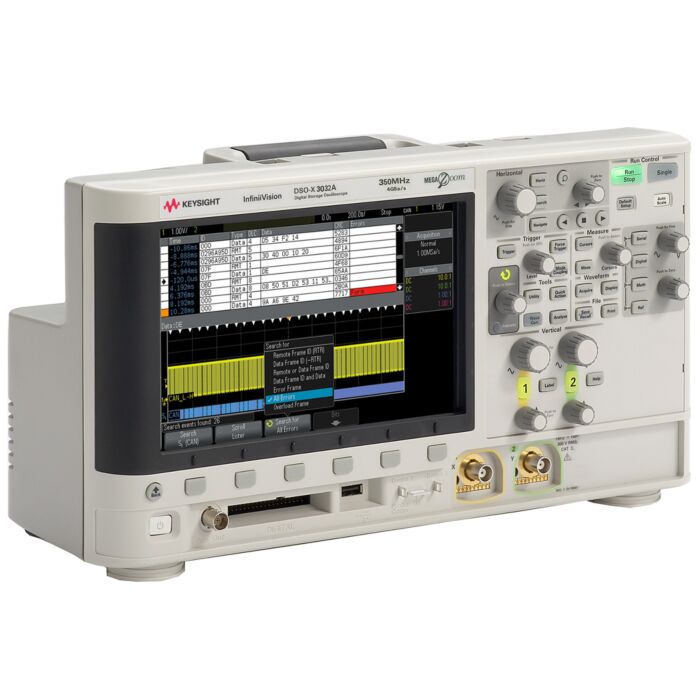

Keysight 3000A-Series Oscilloscopes

The InfiniiVision 3000A X-Series redefined oscilloscopes. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection.

The 3000A X-Series’s innovation starts with the industry’s only 5-instruments-in-1 integration. The industry-leading one million waveforms per second update rate is 20 times faster than the competition to display the most signal detail. The 3000A X-Series provides maximum investment protection with fully-upgradable 5-instruments-in-1; even bandwidth is upgradable. Our breakthrough technology delivers more scope for the same budget.

Looking for bleeding edge functionality? Check out the newly released Keysight 3000T X-Series Oscilloscope with an innovative touchscreen interface.

Why Buy the 3000A from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of the Keysight 3000A X-Series, and can offer 3-day accredited calibrations on new orders. Browse our complete selection of 3000A Oscilloscopes below, or check out our comparison chart to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!

3000A X-Series Key Features

• One million waveforms per second update rate
• MegaZoom IV smart memory technology
• Large 8.5-inch WVGA display
• Optional segmented memory
• Industry’s first 5-instruments-in-1 (oscilloscope, digital channels, built-in 20 MHz function/arbitrary waveform generator with modulation, integrated digital voltmeter and protocol analyzer)
• Investment protection with Industry’s only fullyupgradable oscilloscope, including bandwidth to 1 GHz
• Industry’s leading application solutions

3000A X-Series Comparison Chart

Product	Bandwidth	Sample Rate	Channels	Max Memory Depth	Description
DSOX3012A	100 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2	4 Mpts (Optional, 2Mpts standard)	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3012A	100 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3014A	100 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3014A	100 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3024A	200 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3024A	200 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3032A	350 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2	4 Mpts (Optional, 2Mpts standard)	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3032A	350 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3034A	350 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3034A	350 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3052A	500 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2	4 Mpts	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3052A	500 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3102A	1 GHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2	4 Mpts (Optional, 2Mpts standard)	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3102A	1 GHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	2 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3104A	1 GHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3104A	1 GHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
DSOX3054A	500 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
MSOX3054A	500 MHz	2 GSa/s per channel, 4 GSa/s half-channel interleaved mode	4 analog plus 16 digital	4 Mpts (Optional, 2Mpts standard)	This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.
