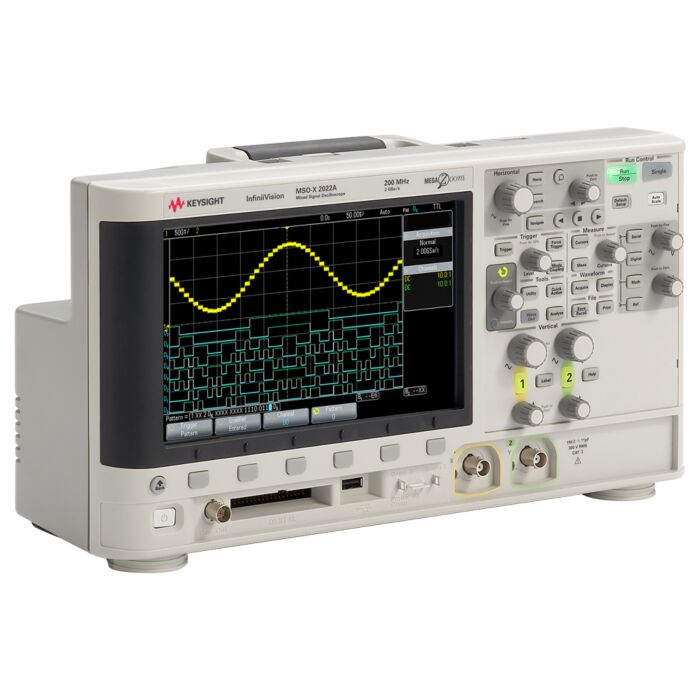

Keysight 2000X Digital Oscilloscopes
Order #: Keysight Technologies 2000 X-Series Oscilloscope
The InfiniiVision 2000 X-Series offers entry-level price points to fit your budget with superior performance and optional capabilities that are not available in any other oscilloscope in its class. This Keysight Technologies, Inc. breakthrough technology delivers more scope for the same budget.
Engineering for the best signal visibility starts with the largest display. Our 8.5‑inch WVGA display offers 50% more viewing area with 3.5 times the resolution (WVGA 800 x 480 versus 7-inch WQVGA 480 x 234).
Why Buy the 2000 X-Series from Transcat? Calibration. Selection. Price.
Transcat is a leading supplier of the Keysight 2000 X-Series, and can offer 3-day accredited calibrations on new orders. Browse our complete selection of Keysight Oscilloscopes below, or check out our comparison chart to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!
2000 X-Series Key Features
- 70 MHz to 200 MHz
- DSO or MSO (8 digital channels)
- Standard 5 year factory warranty
- Up to 1 Mpts memory
- Built-in 20 MHz function generator (optional)
- Integrated 3-digit voltmeter (optional)
- Serial triggering and analysis for CAN, LIN, I²C, SPI and RS232/422/485/UART (optional)
2000A X-Series Comparison Chart
Model | Bandwidth | Sample Rate | Channels | Max Memory Depth | Description |
---|---|---|---|---|---|
DSOX2002A |
70 MHz | 2 GSa/s half-channel interleaved, 1 GSa/s per channel | 2 | 100 kpts | This 2-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth. |
70 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 2 plus 8 digital | 100 kpts | This 2 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality and investment protection with full upgradability including bandwidth. | |
DSOX2004A |
70 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 4 | 100 kpts | This 4-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth. |
MSOX2004A |
70 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 4 plus 8 digital | 100 kpts | This 4 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality, and investment protection with full upgradability including bandwidth. |
DSOX2012A |
100 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 2 | 100 kpts | This 2-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth. |
MSOX2012A |
100 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 2 plus 8 digital | 100 kpts | This 2 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality and investment protection with full upgradability including bandwidth. |
DSOX2014A |
100 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 4 | 100 kpts | This 4-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth. |
MSOX2014A |
100 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 4 plus 8 digital | 100 kpts | This 4 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality, and investment protection with full upgradability including bandwidth. |
DSOX2022A |
200 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 2 | 100 kpts | This 2-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth. |
MSOX2022A |
200 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 2 plus 8 digital | 100 kpts | This 2 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality and investment protection with full upgradability including bandwidth. |
DSOX2024A |
200 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 4 | 100 kpts | This 4-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth. |
MSOX2024A |
200 MHz | 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode | 4 plus 8 digital | 100 kpts | This 4 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality, and investment protection with full upgradability including bandwidth. |
Product Highlights
- High resolution 8.5-inch display
- Up to 50,000 wfms/s update rate
- Fast, responsive MegaZoom IV deep memory, 100 kpts
- Best–in-class oscilloscope
- Integrated 8-channel mixed signal oscilloscope (MSO)
- Industry-exclusive WaveGen built-in function generator (optional)
- Upgradable bandwidth
- Upgradable MSO
- Upgradable WaveGen built-in function generator
- Upgradable measurement applications
- Bandwidth 70 MHz, 100 MHz, 200 MHz
- Channels 2 or 4 analog channels (DSO) +8 digital channels (MSO)
- Sample rate Up to 2 GSa/s
- Memory 100 kpts
- Display 8.5-inch WVGA (800 x 480)
- Update rate 50,000 wfms/s
- Upgradable Bandwidth, MSO, measurement applications and WaveGen
- Warranty Standard 3-year
- Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
Each Unit Includes
- Standard 5-year warranty
- Standard secure erase
- N2862B 150 MHz 10:1 passive probe Standard one per channel for 70 and 100 MHz models
- N2863B 300 MHz, 10:1 passive probe Standard one per channel for 200 MHz models
- N6459-60001 8-channel logic probe and accessory kit Standard on MSO models or with DSOX2MSO upgrade
- Localized power cord
Bandwidth | 70/100/200 MHz |
Sampling rate | 2 GSa/s |
Analog | 2 or 4 |
Digital | 8 |
Memory | 100 kpt standard |
Option | 1 Mpts Option |
Segmented memory | Option |
Waveform update rate | 50,000 |
Display size | 8.5 inch |
Capacitive touch screen | Not Available |
Hardware zone trigger | Not Available |
Advanced math | Not Available | AutoProbe interface | Not Available |
Application bundle option | DSOX2APPBNDL |
