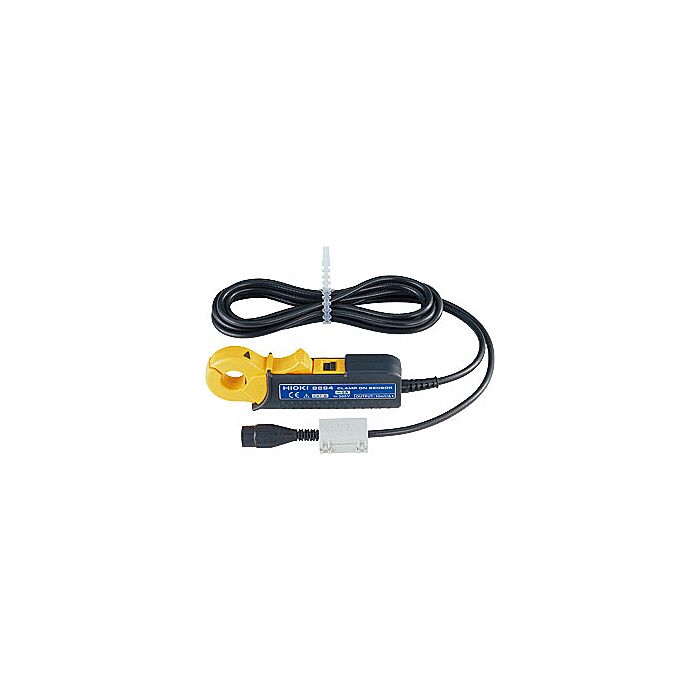

Hioki 9694

Hioki 9694

Clamp On Sensor 5A AC

Order #: 9694

Mfg #: 9694

Questions about availability or need help? Contact Us:

(800) 633-0561 sales@transcat.com

$604.80

Qty

Hioki 9694

Clamp On Sensor 5A AC

Order #: 9694

Mfg #: 9694

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$604.80

Register to view exclusive member pricing

Hioki products are available to ship to customers in the United States only.

Availability:

In stock

Choose Your Options:

New Purchase Calibration

None

Calibration without Data + $111.30

Calibration with Data + $159.60

Accredited Calibration with Data and Uncertainties + $218.40

Add Calibration

Qty

This product is available for shipping to the United States and Puerto Rico only.

Product Overview

Product Highlights

Rated input current: 5 A AC
Rated output current: 50 mV AC
Accuracy (at 45 to 66 Hz) Amplitude: ±0.3 % rdg. ±0.02 % f.s. - Full scale (f.s.) is the 3196 range value
Phase: ±2° or less
Frequency characteristics: 66 Hz to 5 kHz (±1 % or less from accuracy)
Max. allowable input: continuous 50 A rms (45 to 66 Hz)
Max. circuit voltage: 300 V AC rms (insulated wire)
Core jaw dia.: Ø15 mm(0.59 in)
Dimensions: 46 mm( 1.81 in) W × 135 mm (5.31 in) H × 21 mm (0.83 in) D
Weight: 230 g (8.1 oz)
Cord length: 3 m (9.84 ft)
