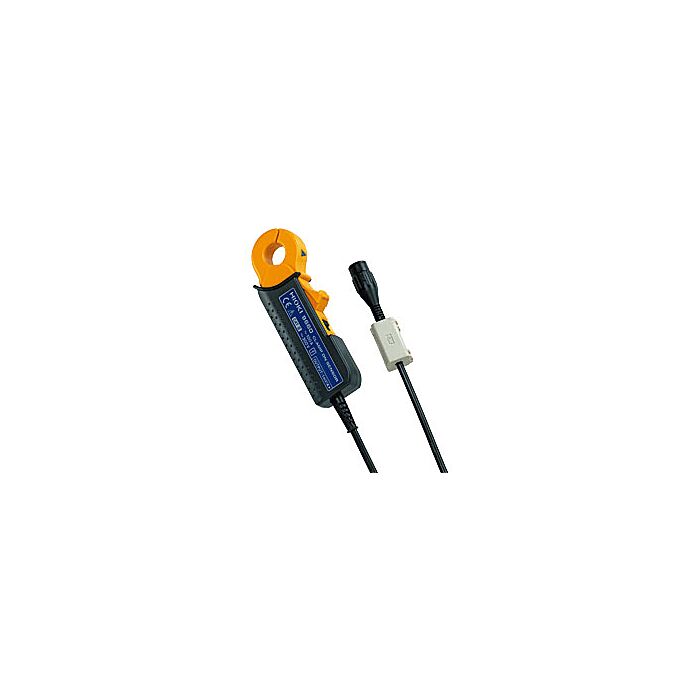

Hioki 9660
Clamp on Sensor

Order #: 9660

Mfg #: 9660

Questions about availability or need help? Contact Us:

(800) 633-0561
$460.60

Hioki 9660

Clamp on Sensor

Order #: 9660

Mfg #: 9660

$460.60

Hioki products are available to ship to customers in the United States only.

Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Puerto Rico only.

Product Highlights

  • Hioki Model# 9660
  • Rated input current 100 A AC
  • Rated output voltage 0.1 V AC
  • Accuracy (at 45 to 66 Hz) Amplitude: ±0.5 % rdg. ±0.2 % f.s. , Full scale (f.s.) is the 3196 range value, Phase: ±1 ° or less (at 90 A or less), ±1.3 ° or less (at 90 A to 100 A)
  • Frequency characteristics 66 Hz to 5 kHz (±1 % or less from accuracy)
  • Max. allowable input continuous 130 A rms (45 to 66 Hz)
  • Max. circuit voltage 300 V AC rms (insulated wire)
  • Core jaw dia. Ø15 mm(0.59 in)
  • Dimensions, mass 46 mm(1.81 in)W × 135 mm(5.31 in)H × 21 mm(0.83 in)D, 230 g (8.1 oz), cord length: 3 m(9.84 ft)
