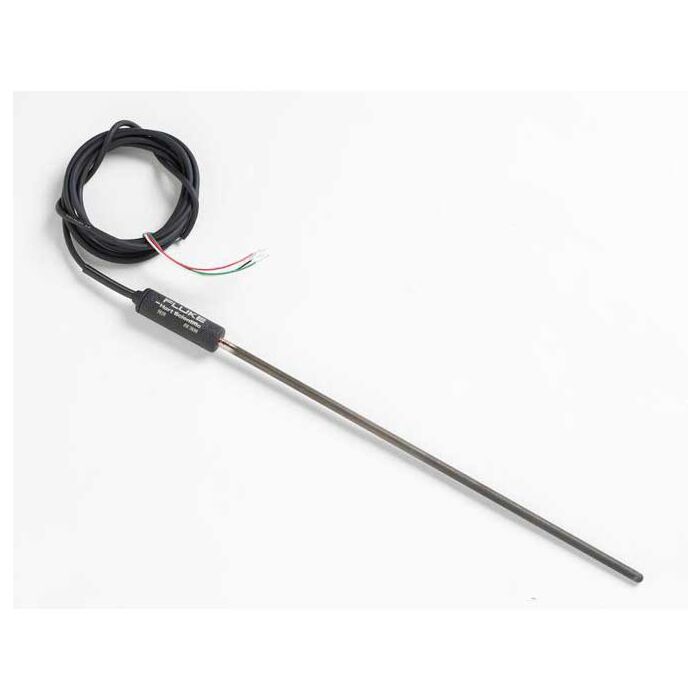

Fluke Calibration 5628-12-D Secondary Standard PRT, 0.25" x 12", 25ohm, -200C to 661C, 5-pin DI
Secondary Std PRT, 0.25" x 12", 25ohm, -200C to 661C, 5-pin DI

Order #: 5628-12-D

Mfg #: 1654389

Questions about availability or need help? Contact Us:

(800) 633-0561
$4,317.60

Fluke Calibration 5628-12-D Secondary Standard PRT, 0.25" x 12", 25ohm, -200C to 661C, 5-pin DI

Secondary Std PRT, 0.25" x 12", 25ohm, -200C to 661C, 5-pin DI

Order #: 5628-12-D

Mfg #: 1654389

$4,317.60
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Range to 660°C
  • Meets all ITS-90 reMeets all ITS-90 requirements for resistance ratios
  • Rtp drift < 20mK after 500 hours at 660°C
  • Strain-free sensor design by Hart's SPRT engineers
  • High-temp PRT, 25.5 Ohm, 305 mm (12 in)
  • If you're using block calibrators, furnaces, or temperature points above normal PRT temperatures (420 °C), then these two PRTs are for you
  • The 5626 is nominally 100Ω and the 5628 is nominally 25.5 Ohm
  • Both instruments have a temperature range of -200 °C to 661 °C
  • They make great working or check standards for calibration work up to the aluminum point
  • Using a regular PRT at temperatures above 500°C exposes the platinum to contamination
  • If the PRT is used as a reference or calibration standard, contamination is a major problem
  • SPRTs, which are more expensive and delicate, can handle the higher temperatures, but with greater risk to the instrument due to shock, contamination, or mishandling
  • The 5626 and 5628 are designed to reduce the contamination risk through the use of internal protection while not impairing performance

Each Unit Includes

  • Accredited Calibration
  • Complete with ITS-90 constants and a resistance-versus-temperature table
  • 5-pin DIN for Tweener Thermometers
