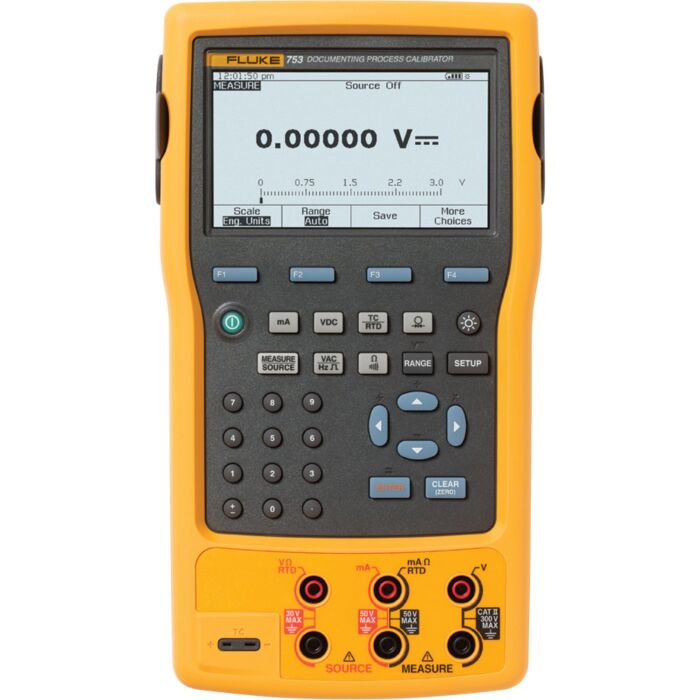

Fluke 753 Documenting Process Calibrator, Non-Bus
Documenting Process Calibrator,Non-Bus

Order #: 753

Mfg #: 3977641

Questions about availability or need help? Contact Us:

(800) 633-0561
$11,588.55

Fluke 753 Documenting Process Calibrator, Non-Bus

Documenting Process Calibrator,Non-Bus

Order #: 753

Mfg #: 3977641

$11,588.55

Fluke's next generation Documenting, Multifunction Calibrator improving upon the popular 74X Series.

Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.
SAVE OVER $624! FREE Tools include:
  • JKTE Mini Plug Set
  • Leatherman SIDEKICK Multi-Tool
  • Fluke BP7240 HZM Li-ion Battery Pack
  • Hard carrying Case
  • Pack of 128 Self Laminating Green Calibration Labels

Fluke 753 Overview

You're going to love what we've done with your calibrator.

The 753 is everything you needed and wished for in the 743B and more!

The 753 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You'll fall in love with the new improved graphical screen, Li-Ion battery for longer life, USB port and new accessories to complete the package.

For documentation, the 753 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations.

Want HART communication built into your 753 calibrator? Consider the Fluke 754 Documenting Process Calibrator with HART.

Fluke 753 Highlights

  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Measure/source pressure using any of 29 Fluke pressure modules
  • Advanced features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
  • Includes the new C799 Field soft case
  • Three-year warranty

Each Fluke 753 Includes

  • Three sets of stackable test leads
  • Three sets of TP220 test probes with three sets of “extended tooth” alligator clips
  • Two sets AC280 hook clips
  • BP7240 Li-ion battery pack
  • BC7240 battery charger
  • C799 field soft case
  • USB communication cable
  • Getting started guide
  • Instruction manual on CDROM
  • NIST traceable certificate of calibration

Webinars

Automating and Documenting Temperature Calibration Webinar with Fluke Calibration

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke 700TC2
    Fluke 700TC2 T/C Mini Connector Kit
    T/C Mini Connector Kit

    Order #: 700TC2

    Mfg #: 620127

    Availability:
    In stock
    Special Price $170.75 Regular Price $198.55
  2. Fluke 750P Series Pressure Modules
    Fluke 750P Series Pressure Modules
    Configure your Fluke 750 Series Pressure Module today!

    Order #: 750P

    Mfg #: 750P

    Availability:
    In stock
    $2,296.75
  3. Transcat 5353C-G
    Transcat 5353C-G
    Calibration Labels-Green, Self-Laminating, 1 3/4x5/8"

    Order #: 5353C-G

    Mfg #: CUSTOM QCC306-GR (QZ0530GR)

    Availability:
    In stock
    Special Price $32.11 Regular Price $33.81
  4. Fluke BC7240
    Fluke BC7240 Battery Charger/Eliminator
    Battery Charger/Eliminator

    Order #: BC7240

    Mfg #: 4022655

    Availability:
    In stock
    Special Price $126.30 Regular Price $146.87
  5. Fluke C700 Hard Carrying Case for 700 Series Calibrators
    Fluke C700 Hard Carrying Case for 700 Series Calibrators
    Hard Carrying Case for 700 Series

    Order #: C700

    Mfg #: 606928

    Availability: Ships in 3-4 weeks
    $454.99
  6. Fluke 700PCK Pressure Module Calibration Kit
    Fluke 700PCK Pressure Module Calibration Kit
    Pressure Module Calibration Kit

    Order #: 700PCK

    Mfg #: 100062

    Availability:
    In stock
    $2,551.35
  7. Fluke 750 SW DPC/TRACK2 Calibration Management Software
    Fluke 750 SW DPC/TRACK2 Calibration Management Software
    Calibration Management Software

    Order #: 750SW

    Mfg #: 4090343

    Availability:
    In stock
    $7,252.87
  8. Fluke 700PTP-1 Pneumatic Test Pump, -13 to 600PSI
    Fluke 700PTP-1 Pneumatic Test Pump, -13 to 600PSI
    Pneumatic Test Pump, -13 to 600PSI

    Order #: 700PTP-1

    Mfg #: 2811774

    Availability:
    In stock
    $1,440.23
  9. Fluke 754HCC Smart Instrument Communication Cable
    Fluke 754HCC Smart Instrument Communication Cable
    Smart Instrument Communication Cable

    Order #: 754HCC

    Mfg #: 3829410

    Availability: Ships in 3-4 weeks
    Special Price $170.75 Regular Price $198.55
  10. Fluke 700PMP Hand Pressure Pump, 150 psi, 1000 kPa
    Fluke 700PMP Hand Pressure Pump, 150 psi, 1000 kPa
    Hand Pressure Pump, 150 psi, 1000 kPa

    Order #: 700PMP

    Mfg #: 617131

    Availability:
    In stock
    Special Price $788.30 Regular Price $916.63
  11. 700TLK
    Fluke 700TLK Process Test Lead Kit
    Process Test Lead Kit

    Order #: 700TLK

    Mfg #: 3829398

    Availability:
    In stock
    Special Price $250.28 Regular Price $291.03
  12. Fluke 700HTH-1
    Fluke 700HTH Hydraulic Test Hose
    Hydraulic Test Hose

    Order #: 700HTH-1

    Mfg #: 2811795

    Availability:
    In stock
    Special Price $941.51 Regular Price $1,094.79
  13. Fluke C781
    Fluke C781 Soft Carrying Case
    Soft Carrying Case

    Order #: C781

    Mfg #: 619988

    Availability:
    Item Discontinued
    $130.14
  14. Fluke 700PRV-1 Pressure Relief Valve Kit
    Fluke 700PRV-1 Pressure Relief Valve Kit
    Pressure Relief Valve Kit Valve Kit

    Order #: 700PRV-1

    Mfg #: 2811808

    Availability: Ships in 3-4 weeks
    Special Price $1,102.92 Regular Price $1,282.47
  15. Fluke 700TC1 T/C Mini Plug Kit
    Fluke 700TC1 T/C Mini Plug Kit
    T/C Mini Plug Kit

    Order #: 700TC1

    Mfg #: 620119

    Availability:
    In stock
    Special Price $170.75 Regular Price $198.55
  16. Fluke 700IV Current Shunt
    Fluke 700IV Current Shunt
    Current Shunt

    Order #: 700IV

    Mfg #: 202561

    Availability: Ships in 3-4 weeks
    Special Price $650.28 Regular Price $756.15
  17. Fluke 700LTP-1 Low Pressure Test Pump, 100PSI (7 BAR)
    Fluke 700LTP-1 Low Pressure Test Pump, 100PSI (7 BAR)
    Low Pressure Test Pump, 100PSI/7 BAR

    Order #: 700LTP-1

    Mfg #: 2811763

    Availability:
    In stock
    $1,459.27
  18. Fluke BP7240 HZM Li-ion Battery Pack for Fluke 753 and 754
    Fluke BP7240 HZM Li-ion Battery Pack for Fluke 753 and 754
    HZM Li-ion Battery Pack for Fluke 753 and 754

    Order #: BP7240

    Mfg #: 4022220

    Availability:
    In stock
    Special Price $308.76 Regular Price $359.03
  19. Fluke C799
    Fluke C799 Soft Field Case Soft Field Case
    Soft Field Case

    Order #: C799

    Mfg #: 4021731

    Availability:
    In stock
    Special Price $250.28 Regular Price $291.03
Measurement Accuracy
Voltage DC Range /Resolution 1 Year 2 Years
100.000 mV 0.02% + 0.005 mV 0.03% + 0.005 mV
3.00000 V 0.02% + 0.00005 V 0.03% + 0.00005 V
30.0000 V 0.02% + 0.0005 V 0.03% + 0.0005 V
300.00 V 0.05% + 0.05 V 0.07% + 0.05 V
Voltage AC 3.000 V (40 Hz to 500 Hz) / 0.001 V 0.5% + 0.002 V 1.0% + 0.004 V
30.00 V (40 Hz to 500 Hz) / 0.01 V 0.5% + 0.02 V 1.0% + 0.04 V
300.0 V (40 Hz to 500 Hz) / 0.1 V 0.5% + 0.2 V 1.0% + 0.2 V
Current DC 30.000 mA 0.01% + 5 uA 0.015% + 7 uA
110.00 mA 0.01% + 20 uA 0.015% + 30 uA
Resistance 10.000 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
100.00 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
1.0000 kΩ 0.05% + 500 mΩ 0.07% + 0.5 Ω
10.000 kΩ 0.1% + 10 Ω 0.15% + 15 Ω
Frequency 1.00 to 110.00 Hz / 0.01 Hz   0.05 Hz
110.1 to 1100.0 Hz / 0.1 Hz   0.5 Hz
1.101 to 11.000 kHz / 0.001 kHz   0.005 kHz
11.01 to 50.00 kHz / 0.01 kHz   0.05 kHz
Source Accuracy
    1 Year 2 Years
Voltage DC 100.000 mV 0.01% + 0.005 mV 0.015% + 0.005 mV
1.00000 V 0.01% + 0.00005 V 0.015% + 0.0005 V
15.0000 V 0.01% + 0.0005 V 0.015% + 0.0005 V
Current DC 22.000 mA (source) 0.01% + 0.003 mA 0.02% + 0.003 mA
Current sink (simulate) 0.02% + 0.007 mA 0.04% + 0.007 mA
Resistance 10.000 Ω 0.01% + 10 mΩ 0.015% + 15 mΩ
100.00 Ω 0.01% + 20 mΩ 0.015% + 30 mΩ
1.0000 kΩ 0.02% + 0.2 Ω 0.03% + 0.3 Ω
10.000 kΩ 0.02% + 3 Ω 0.03% + 5 Ω
Frequency 0.1 to 10.99 Hz   0.01 Hz
0.01 to 10.99 Hz   0.01 Hz
11.00 to 109.99 Hz   0.1 Hz
110.0 to 1099.9 Hz   0.1 Hz
1.100 to 21.999 kHz   0.002 kHz
22.000 to 50.000 kHz   0.005 kHz
Technical Data
Data log functions Measure functions Voltage, current, resistance, frequency, temperature, pressure
Reading rate 1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length 8000 readings (7980 for 30 or 60 readings/minute)
Ramp functions Source functions Voltage, current, resistance, frequency, temperature
Rate 4 steps/second
Trip detect Continuity or voltage (continuity detection not available when sourcing current)
Loop power function Voltage Selectable, 26 V
Accuracy 10%, 18 V minimum at 22 mA
Maximum current 25 mA, short circuit protected
Maximum input voltage 50 V DC
Step functions Source functions Voltage, current, resistance, frequency, temperature
Manual step Selectable step, change with arrow buttons
Autostep Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications
Operating temperature -10°C to +50°C
Storage temperature -20°C to +60°C
Dust/water resistance Meets IP52, IEC 529
Operating altitude 3000 m above mean sea level (9842 ft)
Safety Specifications
Agency approvals CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical and General Specifications
Size 136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight 1.2 kg (2.7 lb)
Batteries Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh
Battery life > 8 hours typical
Battery replacement Via snap-shut door without opening calibrator; no tools required
Side port connections Pressure module connector
USB Connector to interface to your PC
Connection for optional battery charger/eliminator
Data storage capacity 1 week of calibration procedures results
90 day specifications The standard specification interval for the 750 Series are 1 and 2 years.
Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Temperature, Resistance Temperature Detectors
Degrees or % of reading - Type (α) Range °C Measure °C1
  1 year 2 year
100 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 800 0.02% + 0.05°C 0.04% + 0.10°C
200 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
500 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
1000 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
100 Ω Pt (3916) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
100 Ω Pt (3926) -200 to 100 0.08°C 0.16°C
100 to 630 0.02% + 0.06°C 0.04% + 0.12°C
10 Ω Cu (427) -100 to 260 0.2°C 0.4°C
120 Ω Ni (672) -80 to 260 0.1°C 0.2°C
Source current Source °C Allowable current2
  1 year 2 year
1 mA 0.05°C 0.10°C 0.1 mA to 10 mA
0.0125% + 0.04°C 0.025% + 0.08°C
500 μA 0.06°C 0.12°C 0.1 mA to 1 mA
0.017% + 0.05°C 0.034% + 0.10°C
250 μA 0.06°C 0.12°C 0.1 mA to 1 mA
0.017% + 0.05°C 0.034% + 0.10°C
150 μA 0.06°C 0.12°C 0.1 mA to 1 mA
0.017% + 0.05°C 0.034% + 0.10°C
1 mA 0.05°C 0.10°C 0.1 mA to 10 mA
0.0125% + 0.04°C 0.025% + 0.08°C
1 mA 0.05°C 0.10°C 0.1 mA to 10 mA
0.0125% + 0.04°C 0.025% + 0.08°C
3 mA 0.2°C 0.4°C 0.1 mA to 10 mA
1 mA 0.04°C 0.08°C 0.1 mA to 10 mA
1. For two and three-wire RTD measurements, add 0.4°C to the specifications.
2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms
Temperature, Thermocouples
Type Source °C Measure °C Source °C
    1 year 2 years 1 year 2 years
E -250 to -200 1.3 2 0.6 0.9
-200 to -100 0.5 0.8 0.3 0.4
-100 to 600 0.3 0.4 0.3 0.4
600 to 1000 0.4 0.6 0.2 0.3
N -200 to -100 1.0 1.5 0.6 0.9
-100 to 900 0.5 0.8 0.5 0.8
900 to 1300 0.6 0.9 0.3 0.4
J -210 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 1200 0.5 0.8 0.3 0.3
K -200 to -100 0.7 1 0.4 0.6
-100 to 400 0.3 0.4 0.3 0.4
400 to 1200 0.5 0.8 0.3 0.4
1200 to 1372 0.7 1 0.3 0.4
T -250 to -200 1.7 2.5 0.9 1.4
-200 to 0 0.6 0.9 0.4 0.6
0 to 400 0.3 0.4 0.3 0.4
B 600 to 800 1.3 2 1 1.5
800 to 1000 1 1.5 0.8 1.2
1000 to 1820 0.9 1.3 0.8 1.2
R -20 to 0 2.3 2.8 1.2 1.8
0 to 100 1.5 2.2 1.1 1.7
100 to 1767 1 1.5 0.9 1.4
S -20 to 0 2.3 2.8 1.2 1.8
0 to 200 1.5 2.1 1.1 1.7
200 to 1400 0.9 1.4 0.9 1.4
1400 to 1767 1.1 1.7 1 1.5
C 0 to 800 0.6 0.9 0.6 0.9
800 to 1200 0.8 1.2 0.7 1
1200 to 1800 1.1 1.6 0.9 1.4
1800 to 2316 2 3 1.3 2
L -200 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 900 0.5 0.8 0.2 0.3
U -200 to 0 0.6 0.9 0.4 0.6
0 to 600 0.3 0.4 0.3 0.4
BP 0 to 1000 1 1.5 0.4 0.6
1000 to 2000 1.6 2.4 0.6 0.9
2000 to 2500 2 3 0.8 1.2
XK -200 to 300 0.2 0.3 0.2 0.5
300 to 800 0.4 0.6 0.3 0.6
All products in this series
