Fluke 1577 1kV Insulation Test & Digital Multimeter, AC/DC Volt, True RMS
1kV Insulation Test & Digital Multimeter,AC/DC Volt.,True RMS

Order #: 65102MM

Mfg #: 2157280

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,110.22 Regular Price $1,323.27

Fluke 1577 1kV Insulation Test & Digital Multimeter, AC/DC Volt, True RMS

1kV Insulation Test & Digital Multimeter,AC/DC Volt.,True RMS

Order #: 65102MM

Mfg #: 2157280

Special Price $1,110.22 Regular Price $1,323.27
This Insulation Multimeter combines a digital insulation tester with a full-featured, True RMS digital multimeter in a single, handheld unit.
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Two powerful tools in one

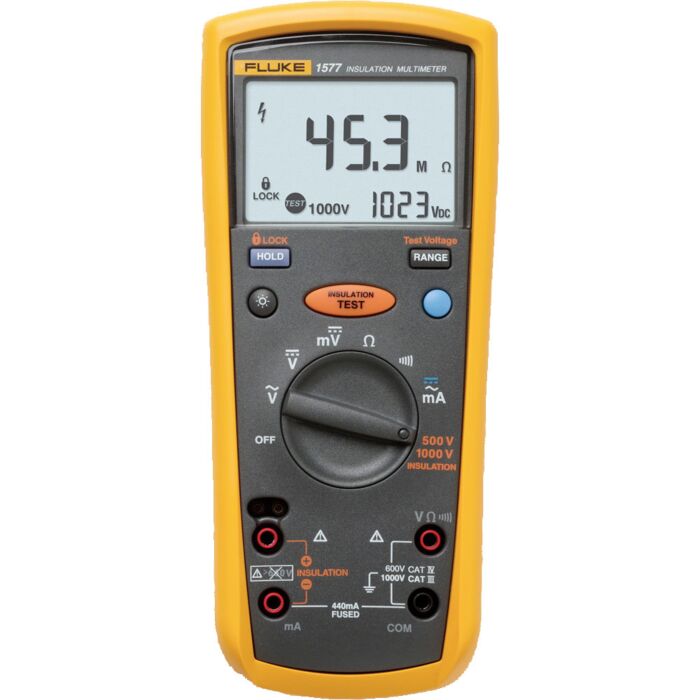

The Fluke 1577 Insulation Multimeter combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.

Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeter is ideally suited to help you with your tasks and at a cost that is far less than buying the two products.

Product Highlights

  • Fluke Model # 1577
  • Insulation test voltages 500V, 1000V
  • Insulation test: 0.1 MOhms to 600 MOhms
  • Auto discharge of capacitive voltage
  • AC/DC Voltage
  • DC millivolts
  • Resistance (0.1 Ohms to 50 MOhms)
  • AC/DC milliamps
  • Continuity
  • Remote probe, test leads, alligator clips Rugged, utility hard case
  • Auto power off to save battery power
  • Three-year warranty
  • True-rms
  • Large display with backlight
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • CAT III 100V, CAT IV 600V measurement category
  • Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work

Each Unit Includes

  • Remote Probe
  • Test Leads
  • Probes
  • Alligator Clips

Webinars

Electrical Safety Measurement Webinar with Fluke

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke TL220
    Fluke TL220 Industrial Test Lead Set for All Fluke Meters
    Industrial Test Lead Set for All Fluke Meters

    Order #: TL20

    Mfg #: 2003625

    Availability:
    In stock
    Special Price $133.13 Regular Price $149.59
  2. Fluke C115 Soft Carry Case with Shoulder Strap
    Fluke C115 Soft Carry Case with Shoulder Strap
    Soft Carry Case w/Shoulder Strap

    Order #: C115

    Mfg #: 2826063

    Availability:
    In stock
    Special Price $64.31 Regular Price $74.79
  3. Fluke TLK289
    Fluke TLK289 Industrial Master Test Lead Set
    Industrial Master Test Lead Set

    Order #: TLK289

    Mfg #: 3045646

    Availability:
    In stock
    Special Price $290.48 Regular Price $326.39
  4. Fluke PRV240
    Fluke PRV240 Battery-powered voltage source proving unit
    Battery-powered voltage source proving unit

    Order #: PRV240

    Mfg #: 4566209

    Availability:
    In stock
    Special Price $228.19 Regular Price $271.99
  5. Fluke 80PK-8 Probe Pipe Clamp, Temperature Probe
    Fluke 80PK-8 Probe Pipe Clamp, Temperature Probe
    Probe Pipe Clamp, Temperature Probe

    Order #: 80PK-8

    Mfg #: 200360

    Availability: Ships in 3-4 weeks
    Special Price $290.48 Regular Price $326.39
  6. Fluke TL27 Heavy Duty Test Lead Set
    Fluke TL27 Heavy Duty Test Lead Set
    Heavy Duty Test Lead Set

    Order #: TL27

    Mfg #: 668571

    Availability:
    In stock
    Special Price $64.14 Regular Price $72.07
  7. Fluke I200 200A AC Clamp with Banana Jack
    Fluke I200 200A AC Clamp with Banana Jack
    200A AC Clamp with Banana Jack

    Order #: I-200

    Mfg #: 664755

    Availability:
    In stock
    Special Price $266.27 Regular Price $299.19
  8. Fluke 80PK-27
    Fluke 80PK-27 SureGrip Industrial Surface Temperature Probe
    SureGrip Industrial Surface Temperature Probe

    Order #: 80PK-27

    Mfg #: 2098723

    Availability:
    In stock
    Special Price $520.46 Regular Price $584.79
  9. Fluke LVD2
    Fluke LVD2 Volt Light
    Volt Light

    Order #: 45879EL

    Mfg #: 2740300

    Availability:
    In stock
    Special Price $64.10 Regular Price $77.23
  10. Fluke CXT170 Rugged Pelican Hard Case
    Fluke CXT170 Rugged Pelican Hard Case
    Rugged Pelican Hard Case

    Order #: CXT170

    Mfg #: 3352567

    Availability:
    In stock
    Special Price $309.93 Regular Price $360.39
  11. Fluke 80AK Thermocouple Adapter Type K
    Fluke 80AK Thermocouple Adapter Type K
    Thermocouple Adapter Type K

    Order #: 80AK

    Mfg #: 2747812

    Availability:
    In stock
    Special Price $59.30 Regular Price $66.63
  12. Fluke Toolpak Meter Hanging Kit
    Fluke Toolpak Meter Hanging Kit
    Meter Hanging Kit

    Order #: TPAK80-4

    Mfg #: 1281997

    Availability:
    In stock
    Special Price $62.74 Regular Price $74.79
  13. MC6
    MC6
    MeterCleaner Wipes,Set/6

    Order #: MC6

    Mfg #: 2092212

    Availability: Ships in 3-4 weeks
    $28.00
  14. Fluke L200
    Fluke L200 Probe Light
    Probe Light

    Order #: L200

    Mfg #: 2096346

    Availability: Ships in 3-4 weeks
    Special Price $48.78 Regular Price $53.03
  15. Fluke TP220 SureGrip Industrial Test Probes
    Fluke TP220 SureGrip Industrial Test Probes
    SureGrip Industrial Test Probes

    Order #: TP20

    Mfg #: 1670056

    Availability:
    In stock
    Special Price $38.72 Regular Price $43.51
  16. Fluke C550
    Fluke C550 Premium Tool Bag - Water Resistant
    Premium Tool Bag

    Order #: C550E

    Mfg #: 1547919

    Availability:
    In stock
    Special Price $157.88 Regular Price $183.59
  17. Fluke L210
    Fluke L210 Probe Light Kit
    Probe Light Kit

    Order #: L210

    Mfg #: 2096379

    Availability:
    In stock
    Special Price $90.07 Regular Price $97.91
  18. Fluke 80PK-3A
    Fluke 80PK-3A Surface Probe - Type K Thermocouple
    Surface Probe - Type K Thermocouple

    Order #: 80PK-3A

    Mfg #: 874610

    Availability:
    In stock
    Special Price $266.27 Regular Price $299.19
  19. Fluke C25
    Fluke C25 Soft Carrying Case for Fluke Meters
    Soft Carrying Case for Fluke Meters

    Order #: C25

    Mfg #: 681114

    Availability:
    In stock
    Special Price $64.31 Regular Price $74.79
  20. Fluke TL225 SureGrip Stray Voltage Adapter Test Lead Kit
    Fluke TL225 SureGrip Stray Voltage Adapter Test Lead Kit
    SureGrip Stray Voltage Adapter Test Lead Kit

    Order #: 80152TL

    Mfg #: 2429268

    Availability:
    Item Discontinued
    $216.99
  21. Fluke I1010-KIT AC/DC Current Clamp with Meter Carrying Case
    Fluke I1010-KIT AC/DC Current Clamp with Meter Carrying Case
    AC/DC Current Clamp with Meter Carrying Case

    Order #: I1010-KIT

    Mfg #: 2096998

    Availability: Ships in 3-4 weeks
    Special Price $677.81 Regular Price $761.59
  22. Fluke TLK-225
    Fluke TLK-225 SureGrip Master Accessory Set
    SureGrip Master Accessory Set

    Order #: TLK225

    Mfg #: 2097031

    Availability:
    In stock
    Special Price $262.43 Regular Price $312.79
Specifications
Voltage DC Maximum voltage 1000 V
Accuracy ±(0.2%+2)
Maximum resolution 0.001 V
Voltage AC Maximum voltage 1000 V
Accuracy ±(2%+3)
Maximum resolution 0.1 mV
Current DC Maximum amps 400 mA
Amps accuracy ±(1.0%+2)
Maximum resolution 0.01 mA
Current AC Maximum amps 400 mA
Amps accuracy ±(2.0%+2)*
Maximum resolution 0.01 mA
Resistance Maximum resistance 50 MΩ
Accuracy ±(1.2%+2)
maximum resolution 0.1Ω
Insulation Test
Minimum test current @ 1kΩ/V 1 mA
Test voltages 500, 1000 V
Maximum resistance per test voltage 50 V
100 V
250 V
500 V
1000 V 600 MΩ
Maximum resolution per test voltage 50 V 0.01 MΩ
100 V 0.01 MΩ
250 V 0.1 MΩ
500 V 0.1 MΩ
1000 V 0.1 MΩ
Accuracy per test voltage 50 V ±(3% + 5)
100 V ±(3% + 5)
250 V ±(1.5% + 5)
500 V ±(2.0% + 5)
1000 V ±(2.0% + 5)
Environmental Specifications
Operating temperature –20°C to +55°C
Storage temperature -40°C to +60°C
Humidity (without condensation) 0% - 95% (10°C – 30°C)
0% - 75% (30°C – 40°C)
0% - 40% (40°C – 55°C)
Operating altitude 2000 m
Safety Specifications
Overvoltage category Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Agency approvals 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Mechanical and General Specifications
Size 203 x 100 x 50 mm (with holster)
Weight 624 g
Warranty 3 years
Battery life alkaline Meter use 1000 hours
Insulation test use Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP rating IP40
