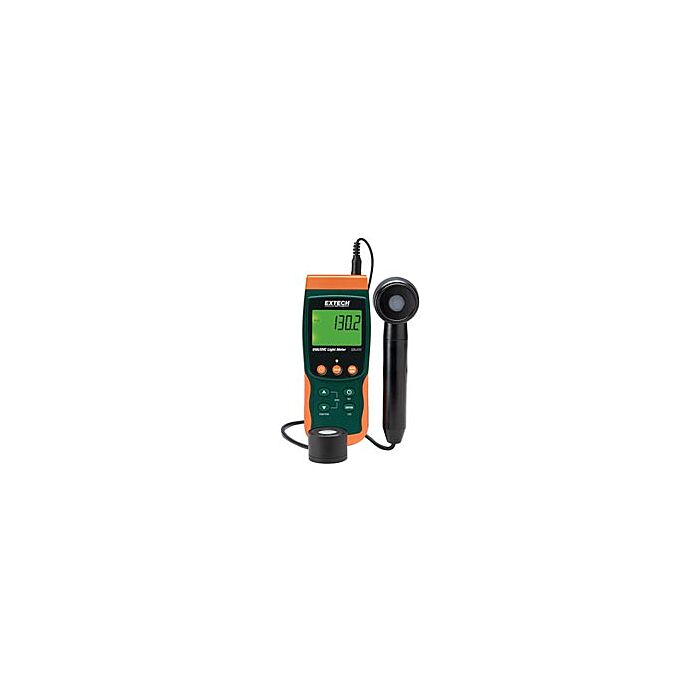

Extech SDL470
UVA/UVC Light Meter/Datalogger

Order #: SDL470

Mfg #: SDL470

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,356.60

Extech SDL470

UVA/UVC Light Meter/Datalogger

Order #: SDL470

Mfg #: SDL470

$1,356.60
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

  • UVA probe captures long-wave 365nm UV irradiance measurements under a UVA (black light) source
  • UVC probe captures short-wave 254nm UV irradiance measurements under a UVC light source
  • Cosine correction filter and metal housing
  • Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
  • Offset adjustment used for zero function or to make relative measurements
  • Adjustable data sampling rate from 1 to 3600 seconds
  • Stores 99 readings manually
  • Type K/J Thermocouple input for temperature measurements (probes sold separately)
  • Large backlit LCD display
  • Record/Recall MIN, MAX readings, Data Hold plus Auto power off with disable function
  • Complete with built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, Universal AC adaptor, and 6 x AA batteries
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Specifications Range Max Resolution Basic Accuracy
UVA Range 2mW/cm², 20mW/cm² 0.001mW/cm² ±4% FS
UVC Range 2mW/cm², 20mW/cm² 0.001mW/cm² ±4% FS
Frequency Bandwidth 365nm (UVA); 254nm (UVC)

Type K Temperature -148 to 2372°F (-100 to 1300°C) 0.1°F/°C ±(0.4%±1.8°F/1°C)
Type J Temperature -148 to 2192°F (-100 to 1200°C) 0.1°F/°C ±(0.4%±1.8°F/1°C)
Memory Manual: 99 data readings; Includes SD memory card for datalogging

Dimensions/ Weight 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)/ 16.2oz (475g)
