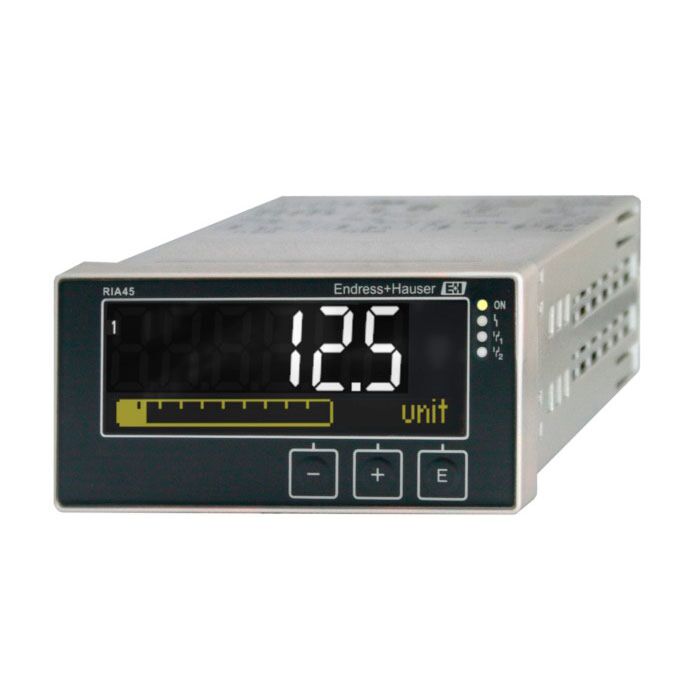

The Endress+Hauser RIA45 Process Meter with Control Unit
Order #: Endress+Hauser RIA45 Process Meter with Control Unit
Analog measured values are indictated, evaluated and calculated by the process meter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.
Product Highlights
- 5-digit 7-segment LC display, backlit
- 1 or 2 universal inputs
- 2 relays (optional)
- Min./max. value saved
- 1 or 2 calculated values and linearization table
- Digital status output (Open Collector)
- SIL2 approval (optional)
Field of Application
The RIA45 panel meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.
- Plant and apparatus engineering and construction
- Control rooms and cabinets
- Laboratories
- Process recording and supervision
- Process control
- Signal adjustment and conversion
| Acquisition / Evaluation | |
|---|---|
| Measuring Principle | Resistance Temperature Detector |
| Function | Display Loop power supply Transmitter functionality Barrier Signal isolation Calculation Limit alarm |
| Certification | ATEX II (1)GD[Ex ia] 4C CSA AIS, NI/I/2 ABCDEFG/T4 FM AIS, NI/I/2 ABCDEFG/T4 GL marine certificate |
| Input | 2 x universal (U, I, R, RTD, TC) |
| Output | 2 x analogue output (I, U) 1 x loop power supply |
| Relay output | 2 x changeover contact 1 x open collector |
| Auxiliary power supply / Loop power supply | 20...250V AC/DC
|
| Dimensions (wxhxd) | Panel housing: 96 x 48 x 175 mm (3.78" x 1.89" x 6.89") |
| Software | Linearization Minimum value per channel Maximum value per channel Calculation Band value monitoring |
| Operation | 3 keys Interface CDI to USB at PC + configuration software FieldCare |
| Display | Multicolor backlight LCD White/black/yellow Bargraph Unit TAG Alarm warning in plain text |
| Thermometer | |
|---|---|
| Measuring Principle | Resistance Temperature Detector |
| Characteristic / Application | Display Loop Power Supply Transmitter Functionality Barrier Signal Isolation Calculation Limit Alarm |
| Ex - approvals | ATEX EE Ex ia CSA NI FM |
