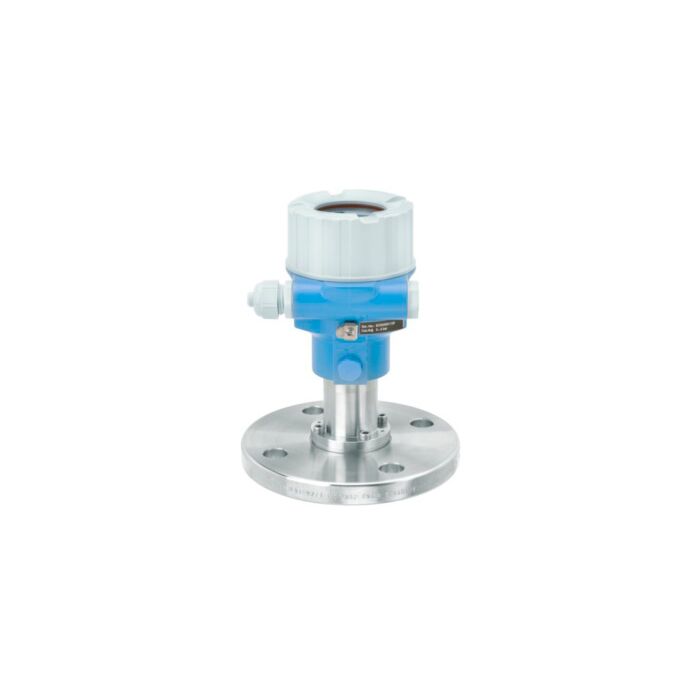

The Endress+Hauser Cerabar PMC51 Absolute and Gauge Pressure Transmitter
Endress+Hauser Cerabar PMC51 Absolute and Gauge Pressure Transmitter
Order #: Endress+Hauser Cerabar PMC51 Absolute Pressure Transmitter
The Endress+Hauser Cerabar PMC51 Absolute and Gauge Pressure Transmitter
Endress+Hauser Cerabar PMC51 Absolute and Gauge Pressure Transmitter
Order #: Endress+Hauser Cerabar PMC51 Absolute Pressure Transmitter
The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
Availability: Ships in 2-3 Weeks
Product Highlights
- Best fit for vacuum applications and applications with corrosive and abrasive media
- Process safety through membrane breakage detection
- Overload-resistant high purity ceramic sensor (99.9% Al2O3)
- Condensation resistant also for hygienic applications
- Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
- Process pressure up to SIL2, certified to IEC 61508 and IEC 61511
- Modular concept for easy replacement of display or electronics
Field of Application
Single chamber aluminum or stainless steel (316L) housing.
- Process connections: Threads, flanges or hygienic connections
- Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
- Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)
- Accuracy: ±0.15%, "Platinum" ±0.075%
- International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals
| Continuous/Liquids | |
|---|---|
| Measuring Principle | Hydrostatic |
| Characteristic / Application | Smart and reliable pressure transmitter, with capacitive measuring cell and ceramic process isolating diaphragm (Ceraphire) |
| Supply / Communication | 4 ..20mA HART: 11,5...45V DC Ex ia: 11,5...30V DC PROFIBUS PA FOUNDATION Fieldbus |
| Accuracy | 0,15% Platinum 0,075% |
| Long Term Stability | 0,1% of URL/year |
| Ambient Temperature | -40°C...85°C (-40°F...185°F) |
| Process Temperature | -20°C...125°C (-4°F...275°F) |
| Process Pressure Absolute / Max. Overpressure Limit | 60bar (9000psi) |
| Pressure Measuring Range | 100mbar...40bar (1.5psi...600psi) |
| Main Wetted Parts | Ceraphire Sealing Alloy C276 316L |
Process Connection | Threads Flanges (DIN, ASME, JIS) |
| Max. Measurement Distance | 4000m (1312ft) H2O |
| Output | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI SIL EN10204-3.1 NACE CoC ASME-BPE 3A, EHEDG Marine |
| Options | local display |
| Application Limits | Measuring cell: ceramics If pressurized, possibly use differential pressure measurement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure |
| Pressure | |
|---|---|
| Measuring Principle | Hydrostatic |
| Characteristic | Smart and reliable pressure transmitter with capacitive measuring cell and ceramic process isolating diaphragm (Ceraphire) |
| Supply Voltage | 4...20mA HART 11,5...45V DC (Non Ex): Ex ia: 11,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
| Reference Accuracy | Standard 0,15% Platinum 0,075% |
| Long Term Stability | Less than 0,1% of URL/year Less than 0,175% of URL/ 5 years |
| Process Temperature | -40°C...130°C (-40°F...266°F) 150°C for 1h (302°F for 1h) |
| Ambient Temperature | -40°C...85°C (-40°F...185°F) |
| Measuring Cell | 100mbar...40bar (1.5psi...600psi) relative/ absolute |
| Smallest Calibratable Span | 210 mbar (1.45 psi) |
| Vacuum Resistance | 0 mbar abs. | Max. Turn Down | 20:1 |
| Max. Overpressure Limit | 60bar (900psi) |
| Process Connection | Thread: G1/2...G2, R1/2, MNPT1/2 Flange: DN25...DN80, ASME 1"...4", JIS 10K |
| Hygienic | Tri-Clamp DIN11851 DIN11864-1 NEUMO Varivent N SMS DRD |
| Material Process Membrane | Ceramic |
| Material Gasket | Viton, EPDM, NBR, Kalrez |
| Fill Fluid | None, dry measuring cell |
| Material Housing | Die-cast aluminum, AISI 316L |
| Output | 4...20 mA 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI SIL EN10204-3.1 NACE CoC ASME-BPE 3A, EHEDG GL/ ABS/ LR/ BV/ DNV Marine NSF Drinking water |
| Options | Display PWIS free |
