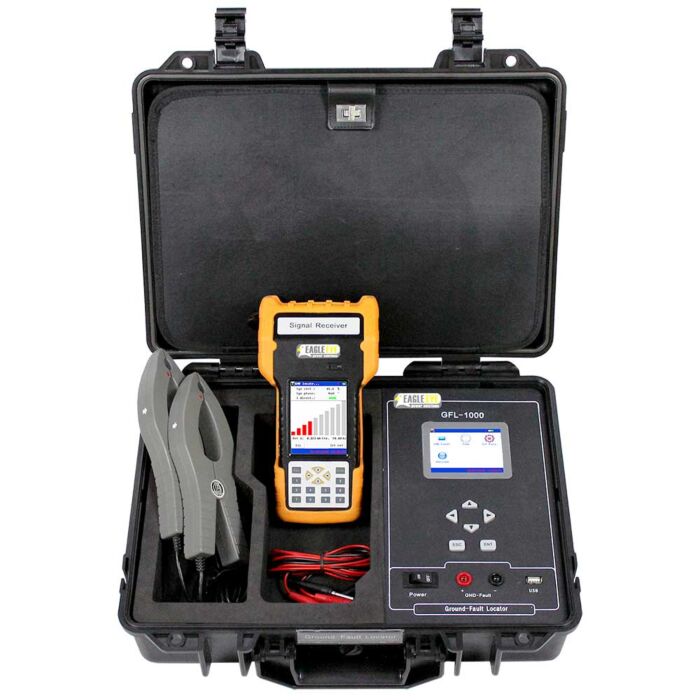

Eagle Eye Power Solutions GFL-1000
DC Ground Fault Locator/ Insulation Tester w/Software

Order #: GFL-1000

Mfg #: GFL-1000

Questions about availability or need help? Contact Us:

(800) 633-0561
$12,751.20

Eagle Eye Power Solutions GFL-1000

DC Ground Fault Locator/ Insulation Tester w/Software

Order #: GFL-1000

Mfg #: GFL-1000

$12,751.20
Availability:
In stock

Product Highlights

  • Two functions in one: Insulation tester and ground fault locator
  • Test and record insulation status of facilities
  • Powerful management DataView Software on PC for data analysis
  • No disconnection of the electrical installation - ground fault location is carried out during operation
  • Fast locations for ground fault even when cables are buried
  • Signal-generator with adjustable frequency and voltage
  • Reflects aging status of facilities for further reparation
  • Reduced maintenance and repair costs
  • Compact & rugged design
  • Measuring range V testing: 0.00-1000V, Insulation resistance: 20kO-500MO (250V)
  • 50kohms-1000Mohms (500V) 100 kohms-2000Mohms (1000V)
  • Min resolution Voltage: 0.1V Insulation R: 0.01 Mohms
  • Accuracy Voltage: 1%rdg±8dgt
  • Insulation R: 0.5 Mohm-100 Mohm 5 rdg±6dgt?100 MO: 10%rdg±6dgt
  • Output signal voltage: 0-1000V±10% Frequency: 1-1000Hz
  • Power consumption =4 hours(continuous operation)
  • Memory 32k×8bit Non Volatile SRAM
  • Displaying screen 128×64 pixels LCD
  • Communication USB interface
  • Dimension 14.5"L x 11.4"W x 9.8"H
  • Humidity 80%R.H
  • Testing accuracy =0.25Mohm
  • Sensor aperture 2.3"
  • Battery Li-ion
  • Weight 15.4 lbs.
  • Temperature 23°F to 104°F
  • Power voltage DC 8.4V
  • Jaw opening 2.6"

Each Unit Includes

  • GFL-1000 Main Body Signal Generator
  • Power Adapter
  • Two (2) Signal Testing Leads
  • Two (2) Alligator Clips
  • Punctuation Clip
  • Signal Receiver
  • Two (2) Dual-Range Current Detector
  • Two (2) Batteries
  • Battery Charger
  • Carrying Case
