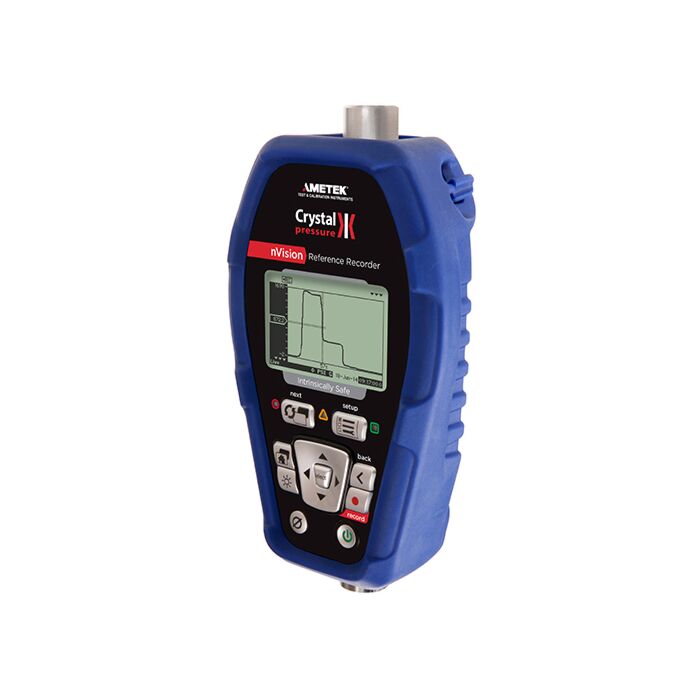

Crystal nVision Reference Recorder

With the accuracy of a deadweight tester and Crystal's trademark durability, the Crysal nVision Reference Pressure Recorder provides a relaible and compact solution to replace multiple temperature and pressure recording devices. Designed for rugged environments, the Crystal nVision is IP67 rated, records and stores up to 1 million data points and provides a safer, tougher, smarter alternative to traditional paper chart recorders. Key features include:

• · Gauge / Absolute Pressure Datalogger to 15 000 psi / 1000 bar / 100MPa
• · Differential Pressure with up to 0.025% of reading accuracy
• · Switch, Voltage, Current, and Temperature
• · 500 000 data points - 10 readings per second from 2 modules

Why Buy the Crystal nVision Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Crystal Engineering pressure instruments, and can offer accredited calibrations on new orders. Browse our complete selection of nVision Recorders below, or check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!

nVision Key Features

• Records 1 Million Data Points
• Simple to Use - Intuitive keypad takes seconds to learn.
• Live Data Graphing
• Robust - Drop tested from 5 feet.
• Quick-change module bays. Switch modules anywhere.
• Chemically-resistant and corrosion-proof.
• Large, backlit display
• LED icons indicate recording status and overpressure.
• BARO Option–Switch between absolute and gauge pressure.
• Easily accessed mini-USB port.
• Submersible in 1 meter of water for 30 minutes.
• Ultra-Low Power Mode: 60 days of operation on 4 AA batteries.

nVision Ordering Options

Order Option	Description
-BARO	BARO Module – Converts gauge pressure measurement to the absolute scale.
-N	CPF NPT Fitting Kit (Part Number 4013) Includes MPF-1/8QTF, MPF-1/4QTF, and MPF-1/2QTF)
-B	CPF BSP Fitting Kit (Part Number 4015) Includes MPF-1/8BSPF, MPF-1/4BSPF, MPF-3/8BSPF, and MPF-1/2BSPF)
System A
AHX	Pump System: Includes a T-970 pneumatic hand pump (0 to 580 psi / 40 bar)
AXX	Pump System: Includes a T-960 pneumatic hand pump (0 to 30 psi / 2 bar)
System B
BHX	Pump System: Includes a T-975 pneumatic hand pump (-25 inHg to 580 psi / - 0.91 to 40 bar)
BXX	Pump System: Includes a T-965 pneumatic hand pump (-25 inHg to 30 psi / - 0.91 to 2 bar)
System C
CHX	Pump System: Includes a T-620H Hydraulic Hand Pump (0 to 5000 psi)
CXX	Pump System: Includes a T-620 Hydraulic Hand Pump (0 to 3000 psi)
System D
DOX	Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with oil)
DWX	Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with water)
System E
EOX	Pump System: Includes a P-014 hydraulic bench top pump (0 to 10 000 psi, for use with oil)
System F
FOV	Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with oil)
FWV	Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with water)
System G
GOX	Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with oil)
GWX	Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with water)
System H
HOX	Pump System: Includes a T-975 Pneumatic Hand Pump (-25 inHg to 580 psi / - 0.91 to 40 bar) and a T-620H Hydraulic Hand Pump (0 to 5000 psi / 350 bar)
